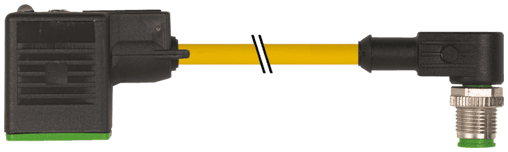

7000-40981-0160200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  156 g
• Series
  Connector Systems
• Protection
  IP66K, IP67 inserted and tightened (EN 60529)
• Approval (cable)
  CE conform
• Shore hardness (wire isolation)
  43 ±5 D
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Test voltage
  3000 V AC
• Operating voltage
  24 V AC ±20% / DC ±25%
• Material (wire)
  Cu wire, bare
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Bend radius (moving)
  10× outer Ø
• Switch off peak
  max. 55 V
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Material (wire isolation)
  PVC
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Wire-Ø incl. isolation
  1.8 mm ±5%
• Shore hardness (jacket)
  80 ±5 A
• Cable length
  2 m
• LED display
  (yellow)
Cable weight [g/m]
63,8 g
AWG
similar to AWG 18
Material (jacket)
PVC
Bend radius (fixed)
5× outer Ø
Form
40981
Cable Type
1 (PVC)
Diameter (core)
3× 0.75 mm²
Outer-Ø (jacket)
5.9 mm ±5%
Current load capacity
to DIN VDE 0298-4
Rated surge voltage
0.8 kV
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Color (jacket)
yellow
Product article number of manufacturer
7000-40981-0160200
Switch off delay time
max. 20 ms
Color/numbering of wires
bk numbered, gnye longitudinally striped
Temperature range (fixed)
-30...+70 °C
Operating current per contact
max. 4 A
Cable identification
016
Temperature range
-25...+85 °C, depending on cable quality
Stranding combination
3 wires twisted
Temperature range (mobile)
-5...+70 °C
Current consumption
approx. 12 mA
Housing
Black plastic (gray on request)
Single wire Ø (core)
0.2 mm
Shield
no
Nominal voltage
300/500 V AC
