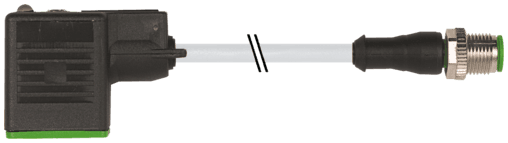

7000-40961-2160600 Murr Elektronik Cable Assemblies

Product Details

• Weight
  372 g
• Series
  Connector Systems
• Switch off delay time
  max. 20 ms
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Operating current per contact
  max. 4 A
• Single wire Ø (core)
  0.2 mm
• Material (wire isolation)
  PVC
• Wire-Ø incl. isolation
  1.8 mm ±5%
• Product article number of manufacturer
  7000-40961-2160600
• Protection
  IP67 inserted and tightened (EN 60529)
• Cable weight [g/m]
  63,8 g
• Shore hardness (jacket)
  80 ±5 A
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Temperature range
  -25...+85 °C, depending on cable quality
• Material (wire)
  Cu wire, bare
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Current load capacity
  to DIN VDE 0298-4
• Form
  40961
• Approval (cable)
  CE conform
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Nominal voltage
300/500 V AC
Bend radius (fixed)
5× outer Ø
Switch off peak
max. 55 V
Housing
Black plastic (gray on request)
Shore hardness (wire isolation)
43 ±5 D
Color (jacket)
gray
Cable length
6 m
Rated surge voltage
0.8 kV
Cable Type
1 (PVC)
Stranding combination
3 wires twisted
Bend radius (moving)
10× outer Ø
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
AWG
similar to AWG 18
Outer-Ø (jacket)
5.9 mm ±5%
Temperature range (mobile)
-5...+70 °C
Cable identification
216
Diameter (core)
3× 0.75 mm²
Shield
no
Test voltage
3000 V AC
Operating voltage
24 V AC ±20% / DC ±25%
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Material (jacket)
PVC
Temperature range (fixed)
-30...+70 °C
