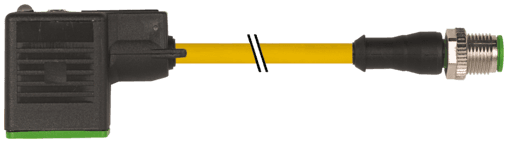

7000-40961-0161000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  590 g
• Series
  Connector Systems
• Operating current per contact
  max. 4 A
• Protection
  IP67 inserted and tightened (EN 60529)
• Approval (cable)
  CE conform
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Current load capacity
  to DIN VDE 0298-4
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Diameter (core)
  3× 0.75 mm²
• Form
  40961
• Construction (core)
  24× 0.2 mm (multi-strand wire class 5)
• Outer-Ø (jacket)
  5.9 mm ±5%
• Product article number of manufacturer
  7000-40961-0161000
• Operating voltage
  24 V AC ±20% / DC ±25%
• Cable Type
  1 (PVC)
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Color (jacket)
  yellow
• Temperature range (fixed)
  -30...+70 °C
• Rated surge voltage
  0.8 kV
• Cable weight [g/m]
  63,8 g
Wire-Ø incl. isolation
1.8 mm ±5%
Nominal voltage
300/500 V AC
Switch off peak
max. 55 V
AWG
similar to AWG 18
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Test voltage
3000 V AC
Temperature range
-25...+85 °C, depending on cable quality
Resistor (core)
max. 26 Ω/km (20 °C)
Shield
no
Temperature range (mobile)
-5...+70 °C
Housing
Black plastic (gray on request)
Cable identification
016
Material (wire isolation)
PVC
Shore hardness (jacket)
80 ±5 A
Cable length
10 m
Material (wire)
Cu wire, bare
Shore hardness (wire isolation)
43 ±5 D
chemical resistance
good resistance to oil, gasoline and chemicals
Stranding combination
3 wires twisted
Bend radius (moving)
10× outer Ø
Switch off delay time
max. 20 ms
Single wire Ø (core)
0.2 mm
Material (jacket)
PVC
Bend radius (fixed)
5× outer Ø
