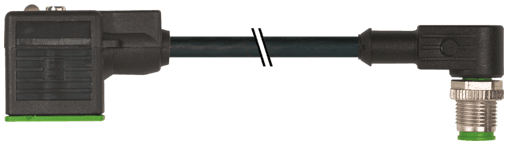

7000-40951-6350150 Murr Elektronik Cable Assemblies

Product Details

• Weight
  110 g
• Series
  Connector Systems
• Operating current per contact
  max. 4 A
• Cable identification
  635
• Material (wire)
  Cu wire, bare
• Wire-Ø incl. isolation
  1.25 mm ±5%
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• Temperature range (mobile)
  -25...+80 °C
• Cable length
  1,5 m
• Protection
  IP66K, IP67 inserted and tightened (EN 60529)
• Single wire Ø (core)
  0.1 mm
• Stranding combination
  5 wires twisted around central filler
• Nominal voltage
  300 V AC
• Operating voltage
  24 V DC ±25%
• Wire isolation
  PP (br, wh, bl, bk, gnye)
• AWG
  similar to AWG 22
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Travel speed (C-track)
  max. 3 m/s
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Outer Ø
  4.8 mm ±5%
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Shield
no
Acceleration (C-track)
max. 10 m/s²
Housing
Black plastic (gray on request)
Resistor (core)
max. 57 Ω/km (20 °C)
Shore hardness (wire isolation)
70 ±5 D
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Color (jacket)
black
Bend radius (moving)
10× outer Ø
Rated surge voltage
0.8 kV
C-track properties
10 Mio.
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Shore hardness (jacket)
90 ±5 A
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
No./diameter of wires
5× 0.34 mm²
Material (wire isolation)
PP
Color/numbering of wires
br, bk, bl, wh, gnye longitudinally striped
Bend radius (fixed)
5× outer Ø
Torsion stress
±180°/m
Temperature range
-25...+85 °C, depending on cable quality
Diameter (core)
5× 0.34 mm²
Outer-Ø (jacket)
4.8 mm ±5%
Current load capacity
to DIN VDE 0298-4
Test voltage
2500 V AC
Form
40951
Cable weight [g/m]
41,8 g
Material (jacket)
PUR
Temperature range (fixed)
-40...+80 °C
No. of torsion cycles
max. 2 Mio. (25 °C)
Product article number of manufacturer
7000-40951-6350150
Current consumption
approx. 12 mA
Cable Type
3 (PUR)
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Jacket Color
black
Torsion speed
35 cycles/min
