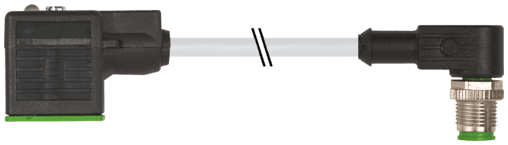

7000-40951-2150200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  155 g
• Series
  Connector Systems
• Temperature range
  -25...+85 °C, depending on cable quality
• Cable weight [g/m]
  48,4 g
• Diameter (core)
  5× 0.34 mm²
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Bend radius (moving)
  10× outer Ø
• Housing
  Black plastic (gray on request)
• Cable identification
  215
• Approval (cable)
  UL (AWM-Style 2464/1731), CSA
• Shield
  no
• thermal resistance
  flame retardant UL 1581 VW1 / CSA FT1
• Operating current per contact
  max. 4 A
• Outer Ø
  5.2 mm ±5%
• Color/numbering of wires
  br, bk, bl, wh, gnye longitudinally striped
• Shore hardness (jacket)
  85 ±5 A
• Product article number of manufacturer
  7000-40951-2150200
• Operating voltage
  24 V DC ±25%
• Single wire Ø (core)
  0.15 mm
• Material (wire isolation)
  PVC
Outer-Ø (jacket)
5.2 mm ±5%
Rated surge voltage
0.8 kV
Wire-Ø incl. isolation
1.25 mm ±5%
Material (jacket)
PVC
Nominal voltage
UL 300 V AC
Cable length
2 m
Form
40951
AWG
similar to AWG 22
Jacket Color
gray
Test voltage
2000 V AC
Current consumption
approx. 12 mA
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Bend radius (fixed)
5× outer Ø
No./diameter of wires
5× 0.34 mm²
Shore hardness (wire isolation)
45 ±5 D
Temperature range (mobile)
-5...+80 °C
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
Wire isolation
PVC (br, wh, bl, bk, gnye)
Cable Type
1 (PVC)
Material (wire)
Cu wire, bare
Color (jacket)
gray
Temperature range (fixed)
-30...+80 °C
Protection
IP66K, IP67 inserted and tightened (EN 60529)
Resistor (core)
max. 60 Ω/km (20 °C)
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Stranding combination
5 wires twisted around central filler
Current load capacity
to DIN VDE 0298-4
