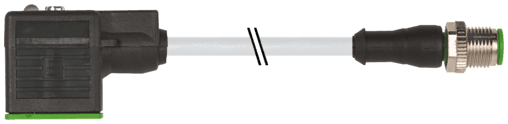

7000-40931-2550150 Murr Elektronik Cable Assemblies

Product Details

• Weight
  109 g
• Series
  Connector Systems
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Housing
  Black plastic (gray on request)
• Approval (cable)
  cURus (AWM-Style 20549/10493); CE conform
• Shore hardness (wire isolation)
  74 ±3 D
• Stranding combination
  5 wires twisted around central filler
• Temperature range (fixed)
  -40...+80 °C, (+90 °C at max. 10 000 operating hours)
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Cable length
  1,5 m
• LED display
  (yellow/green)
• Locking material
  Zinc die casting, matte nickel plated
• Material (wire)
  Cu wire, bare
• Color/numbering of wires
  br, bk, bl, wh, gnye longitudinally striped
• Material (jacket)
  PUR
• Bend radius (moving)
  10× outer Ø
• Product article number of manufacturer
  7000-40931-2550150
• suitable for corrugated tube (internal Ø)
  10 mm
• Material (gasket)
  PUR
• Material (wire isolation)
  PP
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Acceleration (C-track)
min. 5 m/s²
Form
40931
Pollution Degree
3
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Nominal voltage
300 V AC
No. of torsion cycles
max. 1 Mio. (25 °C)
Operating voltage
24 V DC ±25%
Current consumption
max. 15 mA
Single wire Ø (core)
0.1 mm
Shore hardness (jacket)
58 ±3 D
Torsion stress
±360°/m
Material
MSUD (PBT); M12 (PUR)
Temperature range
-25...+85 °C, depending on cable quality
Diameter (core)
5× 0.34 mm²
Outer-Ø (jacket)
5.0 mm ±5%
Current load capacity
to DIN VDE 0298-4
Material group
IEC 60664-1, category I
Cable Type
5 (PUR schweißfunkenbeständig)
AWG
similar to AWG 22
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Operating current per contact
max. 4 A
Protection
IP67 inserted and tightened (EN 60529)
Cable weight [g/m]
41,8 g
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Wire-Ø incl. isolation
1.25 mm ±5%
thermal resistance
flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
Travel speed (C-track)
max. 3.3 m/s
Compression gland
M12 (SW13)
Resistor (core)
max. 60 Ω/km (20 °C)
Shield
no
Test voltage
2500 V AC
Torsion speed
35 cycles/min
Rated surge voltage
0.8 kV
Cable identification
255
Color (jacket)
gray
Bend radius (fixed)
5× outer Ø
