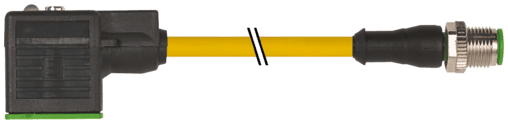

7000-40931-0350750 Murr Elektronik Cable Assemblies

Product Details

• Weight
  345 g
• Series
  Connector Systems
• Housing
  Black plastic (gray on request)
• Resistor (core)
  max. 57 Ω/km (20 °C)
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• Operating current per contact
  max. 4 A
• Wire isolation
  PP (br, wh, bl, bk, gnye)
• Cable weight [g/m]
  41,8 g
• Shore hardness (wire isolation)
  70 ±5 D
• Shore hardness (jacket)
  90 ±5 A
• Test voltage
  2500 V AC
• Acceleration (C-track)
  max. 10 m/s²
• Rated surge voltage
  0.8 kV
• Pollution Degree
  3
• Material (wire isolation)
  PP
• Travel speed (C-track)
  max. 3 m/s
• Form
  40931
• No./diameter of wires
  5× 0.34 mm²
• Approval (cable)
  cURus (AWM-Style 20549/10493); CE conform
• Single wire Ø (core)
  0.1 mm
Shield
no
Torsion speed
35 cycles/min
Material group
IEC 60664-1, category I
C-track properties
10 Mio.
AWG
similar to AWG 22
Material (jacket)
PUR
Nominal voltage
300 V AC
Current consumption
max. 15 mA
Material
MSUD (PBT); M12 (PUR)
Stranding combination
5 wires twisted around central filler
Color (jacket)
yellow
Product article number of manufacturer
7000-40931-0350750
Protection
IP67 inserted and tightened (EN 60529)
Compression gland
M12 (SW13)
suitable for corrugated tube (internal Ø)
10 mm
Cable identification
035
Diameter (core)
5× 0.34 mm²
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Current load capacity
to DIN VDE 0298-4
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Cable length
7,5 m
Operating voltage
24 V DC ±25%
Material (gasket)
PUR
Cable Type
3 (PUR)
Material (wire)
Cu wire, bare
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Temperature range (mobile)
-25...+80 °C
Torsion stress
±180°/m
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
Locking material
Zinc die casting, matte nickel plated
Color/numbering of wires
br, bk, bl, wh, gnye longitudinally striped
Outer-Ø (jacket)
4.8 mm ±5%
Bend radius (moving)
10× outer Ø
LED display
(yellow/green)
Temperature range
-25...+85 °C, depending on cable quality
Outer Ø
4.8 mm ±5%
Wire-Ø incl. isolation
1.25 mm ±5%
Jacket Color
yellow
Temperature range (fixed)
-40...+80 °C
Bend radius (fixed)
5× outer Ø
No. of torsion cycles
max. 2 Mio. (25 °C)
