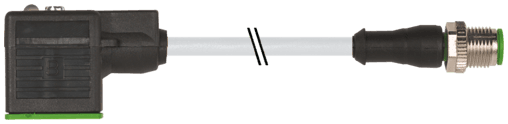

7000-40921-2150100 Murr Elektronik Cable Assemblies

Product Details

• Weight
  100 g
• Series
  Connector Systems
• Resistor (core)
  max. 60 Ω/km (20 °C)
• Material (wire isolation)
  PVC
• Shore hardness (wire isolation)
  45 ±5 D
• Rated surge voltage
  0.8 kV
• Form
  40921
• Material (wire)
  Cu wire, bare
• Cable Type
  1 (PVC)
• Cable identification
  215
• Outer Ø
  5.2 mm ±5%
• Compression gland
  M12 (SW13)
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Approval (cable)
  UL (AWM-Style 2464/1731), CSA
• Operating voltage
  24 V DC ±25%
• No./diameter of wires
  5× 0.34 mm²
• Housing
  Black plastic (gray on request)
• Wire isolation
  PVC (br, wh, bl, bk, gnye)
• Diameter (core)
  5× 0.34 mm²
• Construction (core)
  19× 0.15 mm (multi-strand wire class 5)
Operating current per contact
max. 4 A
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Protection
IP67 inserted and tightened (EN 60529)
Wire-Ø incl. isolation
1.25 mm ±5%
AWG
similar to AWG 22
Color/numbering of wires
br, bk, bl, wh, gnye longitudinally striped
Stranding combination
5 wires twisted around central filler
Temperature range
-25...+85 °C, depending on cable quality
Material (jacket)
PVC
Shield
no
Cable length
1 m
Jacket Color
gray
Test voltage
2000 V AC
chemical resistance
good resistance to oil, gasoline and chemicals
Nominal voltage
UL 300 V AC
thermal resistance
flame retardant UL 1581 VW1 / CSA FT1
Bend radius (fixed)
5× outer Ø
Outer-Ø (jacket)
5.2 mm ±5%
Temperature range (mobile)
-5...+80 °C
Shore hardness (jacket)
85 ±5 A
Current load capacity
to DIN VDE 0298-4
Single wire Ø (core)
0.15 mm
Color (jacket)
gray
Temperature range (fixed)
-30...+80 °C
Product article number of manufacturer
7000-40921-2150100
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Cable weight [g/m]
48,4 g
Bend radius (moving)
10× outer Ø
