7000-40921-0550200 Murr Elektronik Cable Assemblies
Part#:7000-40921-0550200
Alt. Part#:7000-40921-2550200
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

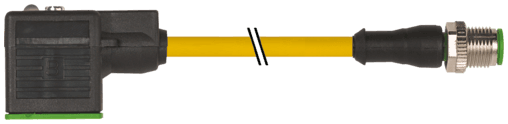

7000-40921-0550200 Murrelektronik - M12 MALE 0° / MSUD VALVE PLUG FORM A 18MM, PUR 5X0.34 YELLOW, ROBOT, drag ch 2m
Product Details
- Weight 130 g
- Series Connector Systems
- Housing Black plastic (gray on request)
- Temperature range -25...+85 °C, depending on cable quality
- Approval (cable) cURus (AWM-Style 20549/10493); CE conform
- Shore hardness (wire isolation) 74 ±3 D
- Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
- No. of bending cycles (C-track) max. 10 Mio. (25 °C)
- Operating current per contact max. 4 A
- No./diameter of wires 5× 0.34 mm²
- AWG similar to AWG 22
- Jacket Color yellow
- Current load capacity to DIN VDE 0298-4
- Locking of ports M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
- Cable weight [g/m] 41,8 g
- Shield no
- chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
- Travel speed (C-track) max. 3.3 m/s
- Product article number of manufacturer 7000-40921-0550200
- Form 40921
- Material (wire) Cu wire, bare
- Wire-Ø incl. isolation 1.25 mm ±5%
- Test voltage 2500 V AC
- Torsion speed 35 cycles/min
- Compression gland M12 (SW13)
- Wire isolation PP (br, wh, bl, bk, gnye)
- Color/numbering of wires br, bk, bl, wh, gnye longitudinally striped
- Bend radius (moving) 10× outer Ø
- Operating voltage 24 V DC ±25%
- Cable Type 5 (PUR schweißfunkenbeständig)
- Cable identification 055
- Material property (wire isolation) CFC-, halogen-, cadmium-, silicone- and lead-free
- thermal resistance flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
- Temperature range (mobile) -25...+80 °C
- Cable length 2 m
- Rated surge voltage 0.8 kV
- Resistor (core) max. 60 Ω/km (20 °C)
- Outer-Ø (jacket) 5.0 mm ±5%
- Nominal voltage 300 V AC
- Bend radius (fixed) 5× outer Ø
- C-track properties 10 Mio.
- Construction (core) 42× 0.1 mm (multi-strand wire class 6)
- Diameter (core) 5× 0.34 mm²
- Material (jacket) PUR
- Acceleration (C-track) max. 5 m/s²
- Outer Ø 5.0 mm ±5%
- Material (wire isolation) PP
- Shore hardness (jacket) 58 ±3 D
- Temperature range (fixed) -40...+80 °C
- No. of torsion cycles max. 1 Mio. (25 °C)
- Protection IP67 inserted and tightened (EN 60529)
- Single wire Ø (core) 0.1 mm
- Stranding combination 5 wires twisted around central filler
- Color (jacket) yellow
- Torsion stress ±360°/m
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7000-40921-0550200 on Applied Automation is $49.65. Order now.
