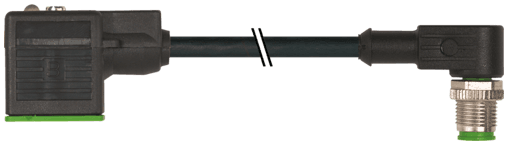

7000-40901-6360300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  203 g
• Series
  Connector Systems
• Torsion stress
  ±180°/m
• Rated surge voltage
  0.8 kV
• Switch off peak
  max. 55 V
• Material
  MSUD (PBT); M12 (PUR)
• Current consumption
  approx. 15 mA
• Form
  40901
• Material (gasket)
  PUR
• LED display
  yellow
• Compression gland
  M12 (SW13)
• Material (wire isolation)
  PP
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Current load capacity
  to DIN VDE 0298-4
• Cable length
  3 m
• Operating voltage
  24 V AC ±20% / DC ±25%
• Additional suppressor
  Diode/Z-Diode
• Material (wire)
  Cu wire, bare
• Construction (core)
  42× 0.15 mm (multi-strand wire class 6)
• Stranding combination
  3 wires twisted
Material group
IEC 60664-1, category I
Temperature range
-25...+85 °C, depending on cable quality
suitable for corrugated tube (internal Ø)
10 mm
Operating current per contact
max. 4 A
Cable Type
3 (PUR)
Diameter (core)
3× 0.75 mm²
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Shore hardness (wire isolation)
70 ±5 D
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Test voltage
2500 V AC
Bend radius (fixed)
5× outer Ø
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Bend radius (moving)
10× outer Ø
Shore hardness (jacket)
90 ±5 A
Product article number of manufacturer
7000-40901-6360300
No. of torsion cycles
max. 2 Mio. (25 °C)
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
Housing
Black plastic (gray on request)
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Shield
no
Protection
IP67 inserted and tightened (EN 60529)
Cable identification
636
Single wire Ø (core)
0.15 mm
Material (jacket)
PUR
Nominal voltage
300 V AC
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Travel speed (C-track)
max. 3 m/s
Acceleration (C-track)
max. 10 m/s²
Locking material
Zinc die casting, matte nickel plated
Switch off delay time
max. 20 ms
AWG
similar to AWG 18
Wire-Ø incl. isolation
1.85 mm ±5%
Pollution Degree
3
Cable weight [g/m]
56,1 g
Color/numbering of wires
bk numbered, gnye longitudinally striped
Color (jacket)
black
Outer-Ø (jacket)
5.9 mm ±5%
Torsion speed
35 cycles/min
