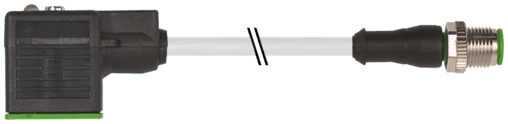

7000-40881-2560030 Murr Elektronik Cable Assemblies

Product Details

• Weight
  62 g
• Series
  Connector Systems
• Protection
  IP67 inserted and tightened (EN 60529)
• Cable Type
  5 (PUR schweißfunkenbeständig)
• Shore hardness (wire isolation)
  74 ±3 D
• Outer-Ø (jacket)
  5.2 mm ±5%
• Travel speed (C-track)
  max. 3.3 m/s
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Pollution Degree
  3
• Material property (wire isolation)
  CFC-, halogen-, cadmium-, silicone- and lead-free
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
• Current load capacity
  to DIN VDE 0298-4
• Cable length
  0,3 m
• LED display
  yellow
• Housing
  Black plastic (gray on request)
• Compression gland
  M12 (SW13)
• Wire-Ø incl. isolation
  1.7 mm ±5%
• Nominal voltage
  300 V AC
• Product article number of manufacturer
  7000-40881-2560030
• Operating voltage
  24 V AC ±20% / DC ±25%
Locking material
Zinc die casting, matte nickel plated
Single wire Ø (core)
0.15 mm
Stranding combination
3 wires twisted
Test voltage
2500 V AC
Acceleration (C-track)
max. 5 m/s²
Material group
IEC 60664-1, category I
Cable identification
256
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Material (jacket)
PUR
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Torsion stress
±360°/m
Form
40881
Switch off delay time
max. 20 ms
Diameter (core)
3× 0.75 mm²
Color/numbering of wires
bk numbered, gnye longitudinally striped
thermal resistance
flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
No. of torsion cycles
max. 1 Mio. (25 °C)
Operating current per contact
max. 4 A
suitable for corrugated tube (internal Ø)
10 mm
Resistor (core)
max. 26 Ω/km (20 °C)
Shield
no
Bend radius (fixed)
5× outer Ø
Rated surge voltage
0.8 kV
Temperature range
-25...+85 °C, depending on cable quality
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Switch off peak
max. 55 V
Material (gasket)
PUR
Cable weight [g/m]
48,4 g
AWG
similar to AWG 18
Color (jacket)
gray
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Torsion speed
35 cycles/min
Current consumption
max. 15 mA
Material
MSUD (PBT); M12 (PUR)
Material (wire)
Cu wire, bare
Material (wire isolation)
PP
Shore hardness (jacket)
58 ±3 D
Bend radius (moving)
10× outer Ø
