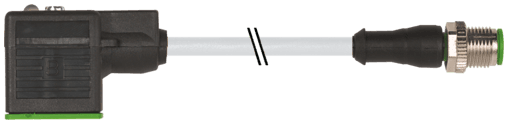

7000-40881-2260400 Murr Elektronik Cable Assemblies

Product Details

• Weight
  252 g
• Series
  Connector Systems
• Form
  40881
• Material (gasket)
  PUR
• Single wire Ø (core)
  0.15 mm
• Rated surge voltage
  0.8 kV
• Material
  MSUD (PBT); M12 (PUR)
• Construction (core)
  42× 0.15 mm (multi-strand wire class 6)
• Nominal voltage
  UL 300 V AC
• Temperature range (fixed)
  -30...+80 °C
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Switch off delay time
  max. 20 ms
• Approval (cable)
  UL (AWM-Style 20549/1731), CSA; CE conform
• Wire-Ø incl. isolation
  1.8 mm ±5%
• No. of bending cycles (C-track)
  max. 2 Mio. (25 °C)
• Material group
  IEC 60664-1, category I
• Locking material
  Zinc die casting, matte nickel plated
• Diameter (core)
  3× 0.75 mm²
• Stranding combination
  3 wires twisted
• Material (jacket)
  PUR/PVC
Bend radius (fixed)
10× outer Ø
Switch off peak
max. 55 V
Pollution Degree
3
suitable for corrugated tube (internal Ø)
10 mm
AWG
similar to AWG 18
Shore hardness (wire isolation)
43 ±5 D
Color (jacket)
gray
Operating current per contact
max. 4 A
Housing
Black plastic (gray on request)
Material (wire)
Cu wire, bare
Outer-Ø (jacket)
5.9 mm ±5%
Shore hardness (jacket)
80 ±5 A (PVC-under jacket); 85 ±5 A (PUR-jacket)
Acceleration (C-track)
max. 5 m/s²
Operating voltage
24 V AC ±20% / DC ±25%
Compression gland
M12 (SW13)
Cable identification
226
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Current load capacity
to DIN VDE 0298-4
Travel speed (C-track)
max. 3.3 m/s
Current consumption
max. 15 mA
Temperature range
-25...+85 °C, depending on cable quality
Cable weight [g/m]
55,33 g
Material (wire isolation)
PVC
chemical resistance
good resistance to oil, gasoline and chemicals
Product article number of manufacturer
7000-40881-2260400
Color/numbering of wires
bk numbered, gnye longitudinally striped
Test voltage
2000 V AC
LED display
yellow
Cable Type
2 (PUR/PVC)
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Bend radius (moving)
15× outer Ø
Cable length
4 m
Protection
IP67 inserted and tightened (EN 60529)
Resistor (core)
max. 26 Ω/km (20 °C)
Shield
no
Temperature range (mobile)
-5...+80 °C
