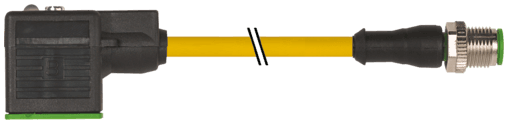

7000-40881-0160600 Murr Elektronik Cable Assemblies

Product Details

• Weight
  375 g
• Series
  Connector Systems
• Switch off peak
  max. 55 V
• Temperature range
  -25...+85 °C, depending on cable quality
• Diameter (core)
  3× 0.75 mm²
• Stranding combination
  3 wires twisted
• Cable length
  6 m
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Protection
  IP67 inserted and tightened (EN 60529)
• Pollution Degree
  3
• Shore hardness (wire isolation)
  43 ±5 D
• chemical resistance
  good resistance to oil, gasoline and chemicals
• LED display
  yellow
• Housing
  Black plastic (gray on request)
• Cable weight [g/m]
  63,8 g
• Wire-Ø incl. isolation
  1.8 mm ±5%
• Shore hardness (jacket)
  80 ±5 A
• Temperature range (fixed)
  -30...+70 °C
• Current consumption
  max. 15 mA
• suitable for corrugated tube (internal Ø)
  10 mm
Approval (cable)
CE conform
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Nominal voltage
300/500 V AC
Test voltage
3000 V AC
Form
40881
Material (gasket)
PUR
Single wire Ø (core)
0.2 mm
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Temperature range (mobile)
-5...+70 °C
Rated surge voltage
0.8 kV
Switch off delay time
max. 20 ms
AWG
similar to AWG 18
Material (jacket)
PVC
Bend radius (fixed)
5× outer Ø
Material
MSUD (PBT); M12 (PUR)
Cable identification
016
Material (wire isolation)
PVC
Shield
no
Product article number of manufacturer
7000-40881-0160600
Operating current per contact
max. 4 A
Cable Type
1 (PVC)
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Outer-Ø (jacket)
5.9 mm ±5%
Bend radius (moving)
10× outer Ø
Material group
IEC 60664-1, category I
Compression gland
M12 (SW13)
Resistor (core)
max. 26 Ω/km (20 °C)
Color (jacket)
yellow
Operating voltage
24 V AC ±20% / DC ±25%
Locking material
Zinc die casting, matte nickel plated
Material (wire)
Cu wire, bare
Color/numbering of wires
bk numbered, gnye longitudinally striped
Current load capacity
to DIN VDE 0298-4
