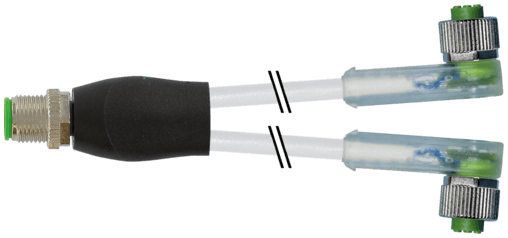

7000-40781-2330100 Murr Elektronik Cable Assemblies

Product Details

• Weight
  94 g
• Series
  Connector Systems
• LED display
  yellow/green
• Material
  PUR
• Material (gasket)
  FKM
• Single wire Ø (core)
  0.1 mm
• Material (jacket)
  PUR
• Outer-Ø (jacket)
  4.1 mm ±5%
• Bend radius (moving)
  10× outer Ø
• Current consumption
  5 mA
• Mounting method
  inserted, tightened
• Material (wire)
  Cu wire, bare
• Material (wire isolation)
  PP
• Color (jacket)
  gray
• Torsion stress
  ±180°/m
• Operating voltage
  24 V DC ±25%
• Standards
  DIN EN 61076-2-101 (M12)
• Cable identification
  233
• Wire-Ø incl. isolation
  1.25 mm ±5%
• Nominal voltage
  300 V AC
Acceleration (C-track)
max. 10 m/s²
Material group
IEC 60664-1, category I
Compression gland
M12 (SW13)
Diameter (core)
3× 0.34 mm²
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
No. of torsion cycles
max. 2 Mio. (25 °C)
Material (contact surface)
Au
Cable weight [g/m]
29,7 g
Shore hardness (wire isolation)
70 ±5 D
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Operating voltage (only UL listed)
30 V DC
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Current load capacity
to DIN VDE 0298-4
Cable length
1 m
Form
40781
Material (contact)
Copper alloy
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Shield
no
Bend radius (fixed)
5× outer Ø
Torsion speed
35 cycles/min
No. of poles
4-/3-pole
Locking material
Zinc die casting, matte nickel plated
Temperature range
-25...+85 °C, depending on cable quality
AWG
similar to AWG 22
Shore hardness (jacket)
90 ±5 A
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Operating current per contact
max. 4 A
suitable for corrugated tube (internal Ø)
10 mm
Pollution Degree
3
Resistor (core)
max. 57 Ω/km (20 °C)
Stranding combination
3 wires twisted
Test voltage
2500 V AC
Product article number of manufacturer
7000-40781-2330100
Rated surge voltage
0.8 kV
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Cable Type
3 (PUR)
Color/numbering of wires
br, bk, bl
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Travel speed (C-track)
max. 3 m/s
