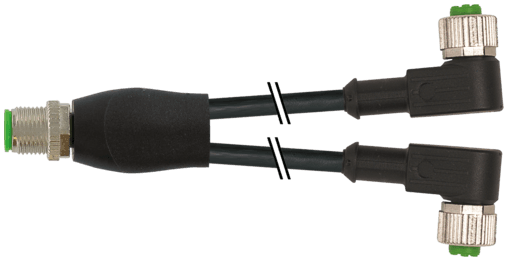

7000-40761-6330300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  202 g
• Series
  Connector Systems
• Protection
  IP65, IP66K, IP67 inserted and tightened (EN 60529)
• Compression gland
  M12 (SW13)
• AWG
  similar to AWG 22
• Shore hardness (jacket)
  90 ±5 A
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Rated surge voltage
  2.5 kV
• Material
  PUR
• Cable weight [g/m]
  29,7 g
• Wire-Ø incl. isolation
  1.25 mm ±5%
• Color (jacket)
  black
• Bend radius (fixed)
  5× outer Ø
• Cable length
  3 m
• Form
  40761
• Temperature range
  -25...+85 °C, depending on cable quality
• Single wire Ø (core)
  0.1 mm
• Stranding combination
  3 wires twisted
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• Product article number of manufacturer
  7000-40761-6330300
Operating current per contact
max. 4 A
Pollution Degree
3
Material (wire isolation)
PP
Outer-Ø (jacket)
4.1 mm ±5%
Bend radius (moving)
10× outer Ø
Coding
A-coded
Cable identification
633
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Test voltage
2500 V AC
Torsion speed
35 cycles/min
Locking material
Zinc die casting, matte nickel plated
Resistor (core)
max. 57 Ω/km (20 °C)
Color/numbering of wires
br, bk, bl
Nominal voltage
300 V AC
Travel speed (C-track)
max. 3 m/s
Material group
IEC 60664-1, category I
suitable for corrugated tube (internal Ø)
10 mm
Material (wire)
Cu wire, bare
Shore hardness (wire isolation)
70 ±5 D
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Torsion stress
±180°/m
Operating voltage
max. 250 V AC/DC
Material (gasket)
FKM
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material (jacket)
PUR
Current load capacity
to DIN VDE 0298-4
No. of torsion cycles
max. 2 Mio. (25 °C)
Operating voltage (only UL listed)
max. 30 V AC/DC
Standards
DIN EN 61076-2-101 (M12)
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Shield
no
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Cable Type
3 (PUR)
Diameter (core)
3× 0.34 mm²
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Acceleration (C-track)
max. 10 m/s²
