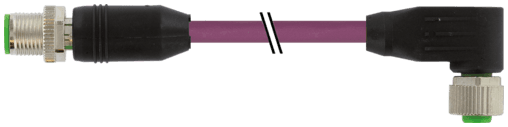

7000-40542-8033000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  1747 g
• Series
  Connector Systems
• No. of poles
  5
• Temperature range
  -25...+85 °C, depending on cable quality
• Color/numbering of wires
  wh, bl (data pair); bk, rd (power pair)
• Bend radius (fixed)
  6× outer Ø
• Rated surge voltage
  1.5 kV
• Mounting method
  inserted, tightened
• Shield
  yes
• Outer-Ø (jacket)
  6.9 mm ±5%
• Material
  PUR
• Wire-Ø incl. isolation
  2.1 mm ±5% (0.25 mm²); 1.5 mm ±5% (0.34 mm²)
• Test voltage
  2000 V AC (test duration 1 min)
• Product article number of manufacturer
  7000-40542-8033000
• Protection
  IP65 and IP67 when plugged and screwed down (EN 60529)
• suitable for corrugated tube (internal Ø)
  without
• Resistor (core)
  max. 78 Ω/km (data pair, max. 54 Ω/km (power pair); (20 °C)
• Nominal voltage
  300 V
• Acceleration (C-track)
  max. 5 m/s²
• Coding
  A-coded
Pollution Degree
3
Shield (Type)
Copper braid
Color (jacket)
violet
Material group
IEC 60664-1, category I
Locking material
Zinc die casting, matte nickel plated
Cable weight [g/m]
63,12 g
Temperature range (mobile)
-30...+70 °C
Cable length
30 m
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Cable identification
803
optical shield cover
min. 65%
Bend radius (moving)
10× outer Ø
Form
40542
Compression gland
M12 (SW13)
AWG
similar to AWG 24 (0.25 mm²); similar to AWG 22 (0.34 mm²)
Temperature range (fixed)
-40...+80 °C
Operating current per contact
max. 4 A
Material (wire)
Cu wire, tin plated
Material (jacket)
PUR
Travel speed (C-track)
max. 3 m/s
Operating voltage
max. 60 V AC/DC
Approval (cable)
cURus (AWM style 20549/10578); CE compliant
thermal resistance
flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std.
No. of bending cycles (C-track)
max. 1 Mio. (25 °C)
