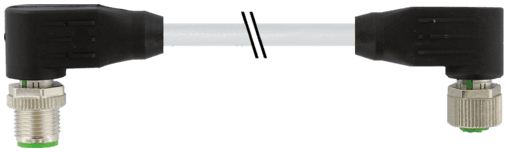

7000-40451-2430500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  319 g
• Series
  Connector Systems
• Material group
  IEC 60664-1, category I
• Wire isolation
  PP (br, wh, bl, bk, gr)
• Construction (core)
  42× 0.1 mm (multi-strand wire class 6)
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• Acceleration (C-track)
  max. 5 m/s²
• Operating voltage (only UL listed)
  max. 30 V AC/DC
• Locking material
  Zinc die casting, matte nickel plated
• Single wire Ø (core)
  0.1 mm
• Protection
  IP66K, IP67 inserted and tightened (EN 60529)
• Standards
  DIN EN 61076-2-101 (M12)
• Cable weight [g/m]
  57,2 g
• Material (wire)
  Cu wire, bare
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Bend radius (fixed)
  5× outer Ø
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Coding
  A-coded
• Cable Type
  3 (PUR)
• AWG
  similar to AWG 22
Material (jacket)
PUR
Test voltage
2000 V AC
Operating voltage
max. 60 V AC/DC
Material (wire isolation)
PP
Outer-Ø (jacket)
5.6 mm ±5%
Temperature range (fixed)
-40...+80 °C
Form
40451
Pollution Degree
3
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Color/numbering of wires
br, bk, bl, wh, gr
Shield (Type)
Copper braid
Nominal voltage
300 V AC
Product article number of manufacturer
7000-40451-2430500
Operating current per contact
max. 4 A
C-track properties
5 Mio.
Diameter (core)
5× 0.34 mm²
Shield
yes
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Bend radius (moving)
10× outer Ø
Torsion speed
35 cycles/min
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
No./diameter of wires
5× 0.34 mm²
Resistor (core)
max. 57 Ω/km (20 °C)
Shore hardness (wire isolation)
70 ±5 D
Jacket Color
gray
No. of bending cycles (C-track)
max. 5 Mio. (25 °C)
Cable length
5 m
Material
PUR
Temperature range
-25...+85 °C, depending on cable quality
Cable identification
243
Stranding combination
5 wires twisted around central filler
Shore hardness (jacket)
90 ±5 A
Current load capacity
to DIN VDE 0298-4
Torsion stress
±30°/m
Wire-Ø incl. isolation
1.25 mm ±5%
optical shield cover
min. 80%
Travel speed (C-track)
max. 3.3 m/s
Compression gland
M12 (SW13)
Outer Ø
5.6 mm ±5%
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Color (jacket)
gray
Temperature range (mobile)
-25...+80 °C
