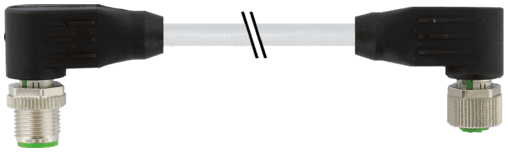

7000-40451-2030300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  241 g
• Series
  Connector Systems
• Cable Type
  1 (PVC)
• Operating voltage (only UL listed)
  max. 30 V AC/DC
• Color/numbering of wires
  br, bk, bl, wh, gr
• Outer-Ø (jacket)
  5.6 mm ±5%
• Cable length
  3 m
• Temperature range
  -25...+85 °C, depending on cable quality
• AWG
  similar to AWG 22
• Protection
  IP66K, IP67 inserted and tightened (EN 60529)
• Bend radius (fixed)
  10× outer Ø
• Material
  PUR
• Form
  40451
• Wire-Ø incl. isolation
  1.25 mm ±5%
• Color (jacket)
  gray
• Approval (cable)
  UL (AWM-Style 2464/1731), CSA
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Shield (Type)
  Copper braid
• Nominal voltage
  300 V AC
• Locking material
  Zinc die casting, matte nickel plated
Cable weight [g/m]
68,2 g
Material (wire isolation)
PVC
Material (jacket)
PVC
Test voltage
2000 V AC
Product article number of manufacturer
7000-40451-2030300
Compression gland
M12 (SW13)
Coding
A-coded
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Shore hardness (jacket)
85 ±5 A
Temperature range (fixed)
-30...+80 °C
Pollution Degree
3
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Diameter (core)
5× 0.34 mm²
Shield
yes
thermal resistance
flammwidrig nach UL 1581 VW1 / CSA FT1 / IEC 60332-1-2
Standards
DIN EN 61076-2-101 (M12)
Material (wire)
Cu wire, bare
Single wire Ø (core)
0.15 mm
Stranding combination
5 wires twisted around central filler
Current load capacity
to DIN VDE 0298-4
Operating voltage
max. 60 V AC/DC
Operating current per contact
max. 4 A
Material group
IEC 60664-1, category I
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Temperature range (mobile)
-5...+80 °C
Cable identification
203
Resistor (core)
max. 57 Ω/km (20 °C)
Shore hardness (wire isolation)
45 ±5 D
chemical resistance
good resistance to oil, gasoline and chemicals
