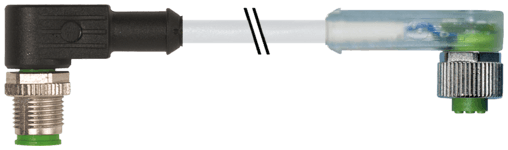

7000-40401-2130030 Murr Elektronik Cable Assemblies

Product Details

• Weight
  39 g
• Series
  Connector Systems
• Compression gland
  M12 (SW13)
• Outer Ø
  4.6 mm ±5%
• Operating voltage
  24 V DC ±25%
• Locking material
  Zinc die casting, matte nickel plated
• Resistor (core)
  max. 60 Ω/km (20 °C)
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Jacket Color
  gray
• Product article number of manufacturer
  7000-40401-2130030
• Protection
  IP66K, IP67 inserted and tightened (EN 60529)
• Standards
  DIN EN 61076-2-101 (M12)
• Approval (cable)
  UL (AWM-Style 2464/1731), CSA
• Material (jacket)
  PVC
• Temperature range (fixed)
  -30...+80 °C
• Coding
  A-coded
• No./diameter of wires
  3× 0.34 mm²
• Diameter (core)
  3× 0.34 mm²
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Test voltage
  2000 V AC
suitable for corrugated tube (internal Ø)
10 mm
Cable weight [g/m]
34,1 g
Material (wire isolation)
PVC
Shield
no
chemical resistance
good resistance to oil, gasoline and chemicals
Operating current per contact
max. 4 A
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Cable identification
213
Shore hardness (jacket)
85 ±5 A
Temperature range (mobile)
-5...+80 °C
Material
PUR
Pollution Degree
3
Material (wire)
Cu wire, bare
Wire-Ø incl. isolation
1.25 mm ±5%
Current load capacity
to DIN VDE 0298-4
Material group
IEC 60664-1, category I
Cable Type
1 (PVC)
Shore hardness (wire isolation)
45 ±5 D
Color (jacket)
gray
Form
40401
Wire isolation
PVC (br, bl, bk)
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Stranding combination
3 wires twisted
thermal resistance
flame retardant UL 1581 VW1 / CSA FT1
Cable length
0,3 m
Operating voltage (only UL listed)
max. 30 V DC
Temperature range
-25...+85 °C, depending on cable quality
Single wire Ø (core)
0.15 mm
AWG
similar to AWG 22
Outer-Ø (jacket)
4.6 mm ±5%
Bend radius (fixed)
5× outer Ø
Color/numbering of wires
br, bk, bl
Nominal voltage
UL 300 V AC
Bend radius (moving)
10× outer Ø
