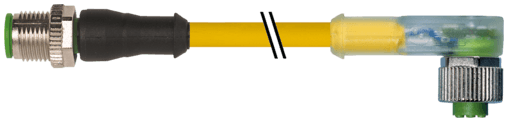

7000-40321-0330060 Murr Elektronik Cable Assemblies

Product Details

• Weight
  38 g
• Series
  Connector Systems
• Form
  40321
• suitable for corrugated tube (internal Ø)
  10 mm
• Resistor (core)
  max. 57 Ω/km (20 °C)
• Diameter (core)
  3× 0.34 mm²
• Outer-Ø (jacket)
  4.1 mm ±5%
• Bend radius (fixed)
  5× outer Ø
• Locking of ports
  Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
• Material
  PUR
• Material (wire)
  Cu wire, bare
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Temperature range (fixed)
  -40...+80 °C, (+90 °C at max. 10 000 operating hours)
• Product article number of manufacturer
  7000-40321-0330060
• Operating voltage
  24 V DC ±25%
• Standards
  DIN EN 61076-2-101 (M12)
• Single wire Ø (core)
  0.1 mm
• Material (jacket)
  PUR
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
Torsion speed
35 cycles/min
Operating current per contact
max. 4 A
Cable identification
033
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material (wire isolation)
PP
Color (jacket)
yellow
Travel speed (C-track)
max. 3 m/s
Rated surge voltage
0.8 kV
Compression gland
M12 (SW13)
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Stranding combination
3 wires twisted
Test voltage
2500 V AC
Material group
IEC 60664-1, category I
Pollution Degree
3
Shore hardness (wire isolation)
70 ±5 D
Nominal voltage
300 V AC
Torsion stress
±180°/m
Operating voltage (only UL listed)
max. 30 V DC
Temperature range
-25...+85 °C, depending on cable quality
Color/numbering of wires
br, bk, bl
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Acceleration (C-track)
max. 10 m/s²
LED display
(yellow/green)
Cable Type
3 (PUR)
AWG
similar to AWG 22
Shore hardness (jacket)
90 ±5 A
Bend radius (moving)
10× outer Ø
No. of torsion cycles
max. 2 Mio. (25 °C)
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Cable weight [g/m]
29,7 g
Wire-Ø incl. isolation
1.25 mm ±5%
Current load capacity
to DIN VDE 0298-4
Locking material
Zinc die casting, matte nickel plated
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Shield
no
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Cable length
0,6 m
