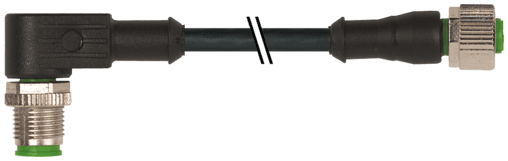

7000-40201-6541400 Murr Elektronik Cable Assemblies

Product Details

• Weight
  521 g
• Series
  Connector Systems
• Operating voltage
  max. 250 V AC/DC
• Pollution Degree
  3
• Approval (cable)
  cURus (AWM-Style 20549/10493); CE conform
• Stranding combination
  4 wires twisted
• Nominal voltage
  300 V AC
• Torsion speed
  35 cycles/min
• Protection
  IP66K, IP67 inserted and tightened (EN 60529)
• Wire isolation
  PP (br, wh, bl, bk)
• Material (wire)
  Cu wire, bare
• Shore hardness (wire isolation)
  74 ±3 D
• Jacket Color
  black
• Temperature range (fixed)
  -40...+80 °C
• Product article number of manufacturer
  7000-40201-6541400
• Coding
  A-coded
• Cable Type
  5 (PUR schweißfunkenbeständig)
• Material (wire isolation)
  PP
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
• Bend radius (moving)
  10× outer Ø
Locking material
Zinc die casting, matte nickel plated
C-track properties
10 Mio.
AWG
similar to AWG 22
thermal resistance
flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
Bend radius (fixed)
5× outer Ø
Form
40201
Compression gland
M12 (SW13)
Cable weight [g/m]
36,3 g
Diameter (core)
4× 0.34 mm²
Color (jacket)
black
Current load capacity
to DIN VDE 0298-4
No. of torsion cycles
max. 1 Mio. (25 °C)
Material
PUR
Standards
DIN EN 61076-2-101 (M12)
Cable identification
654
Color/numbering of wires
br, bk, bl, wh
Material (jacket)
PUR
Temperature range (mobile)
-25...+80 °C
Operating voltage (only UL listed)
max. 30 V AC/DC
Temperature range
-25...+85 °C, depending on cable quality
Single wire Ø (core)
0.1 mm
Shield
no
Test voltage
2500 V AC
Travel speed (C-track)
max. 3.3 m/s
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Outer Ø
4.7 mm ±5%
Wire-Ø incl. isolation
1.25 mm ±5%
Shore hardness (jacket)
58 ±3 D
Torsion stress
±360°/m
Cable length
14 m
Operating current per contact
max. 4 A
suitable for corrugated tube (internal Ø)
10 mm
Resistor (core)
max. 60 Ω/km (20 °C)
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Outer-Ø (jacket)
4.7 mm ±5%
Acceleration (C-track)
max. 5 m/s²
Material group
IEC 60664-1, category I
No./diameter of wires
4× 0.34 mm²
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
