7000-29415-0000000 Murr Elektronik Cable Assemblies
Part#:7000-29415-0000000
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

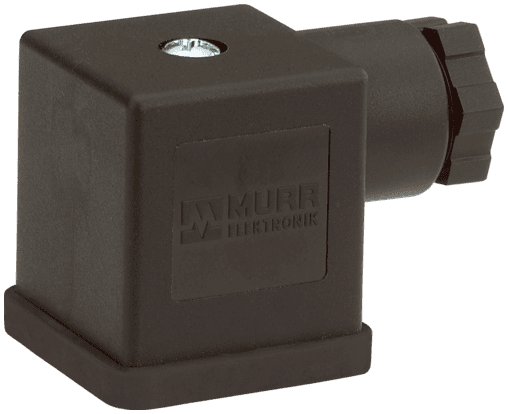

7000-29415-0000000 Murrelektronik - SVS ECO VALVE PLUG FORM A 18MM 250V, 3+PE field-wireable M20x1,5
Product Details
- Weight 29 g
- Series Connector Systems
- Form 29415
- Product article number of manufacturer 7000-29415-0000000
- Locking of ports M3 (recommended torque 0.4 Nm)
- Tightening torque (clamp screw) 0.2 ±0.1 Nm
- Connection cross section 0.5...1.5 mm²
- Temperature range -40...+90 °C
- Protection IP65 inserted and tightened (EN 60529)
- Mounting method inserted, tightened
- Operating voltage max. 250 V AC/DC
- Configuration 3 + PE
- Housing PA6 GF30: black
- Sealing range (cable Ø) 8...10 mm
- Compression gland M20×1.5 mm
- Material (gasket) NBR
- Operating current max. 10 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7000-29415-0000000 on Applied Automation is $7.70. Order now.
