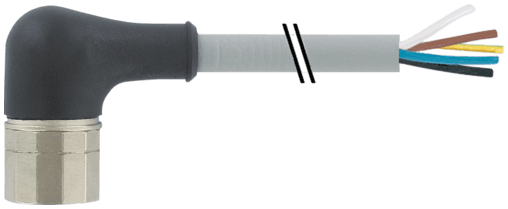

7000-23351-3984000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  6693 g
• Series
  Connector Systems
• Cable Type
  2 (PUR/PVC)
• Shore hardness (wire isolation)
  43 ±5 D
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Travel speed (C-track)
  max. 2 m/s
• Cable identification
  398
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Nominal voltage
  U0/U 300/300 V AC
• C-track properties
  2 Mio.
• Cable number
  398
• Color/numbering of wires
  wh, grpk, brgn, ye, whgn, gn, rdbl, vi, grbr, bk, whgr, rd, yebr, pk, whye, gr+bl, br, gnye longitudinally striped
• Temperature range (fixed)
  -30...+80 °C
• Product article number of manufacturer
  7000-23351-3984000
• Material group
  IEC 60664-1, category I
• Construction (core)
  19× 0.15 mm (0.34 mm²); 42× 0.15 mm (0.75 mm²); (multi-strand wire class 5/6)
• Outer-Ø (jacket)
  10.0 mm ±5%
• Bend radius (fixed)
  5× outer Ø
• Operating voltage
  max. 125 V AC/DC
• Outer Ø
  10.0 mm ±5%
Material (wire isolation)
PVC
Shield
no
Jacket Color
gray
Rated surge voltage
2.5 kV
Cable weight [g/m]
165 g
Material (jacket)
PUR/PVC
Color (jacket)
gray
Temperature range (mobile)
-5...+60 °C
Form
23351
Material (wire)
Cu wire, bare
Single wire Ø (core)
0.15 mm
Shore hardness (jacket)
87 ±5 A
Bend radius (moving)
10× outer Ø
Acceleration (C-track)
max. 10 m/s²
No./diameter of wires
16× 0.34 + 3× 0.75 mm²
Approval (cable)
UL (AWM-Style 21441/10955), CE conform
Diameter (core)
16× 0.34 + 3× 0.75 mm²
Current load capacity
to DIN VDE 0298-4
Cable length
40 m
Temperature range
-5...+70 °C, depending on cable quality
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
No. of bending cycles (C-track)
max. 2 Mio. (25 °C)
Pollution Degree
3
Wire isolation
PVC
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 19 (0.75 mm²)
Test voltage
2000 V AC
