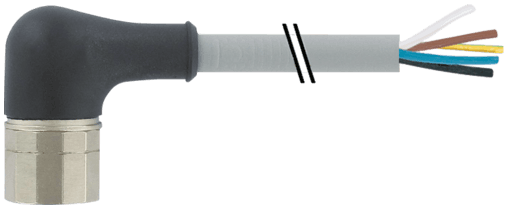

7000-23151-3621000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  1413 g
• Series
  Connector Systems
• Protection
  IP65 and IP67 when plugged and screwed down (EN 60529)
• Cable weight [g/m]
  115,5 g
• Material (jacket)
  PUR/PVC
• Travel speed (C-track)
  max. 2 m/s
• Material
  PUR
• Material (wire)
  Cu wire, bare
• Shore hardness (wire isolation)
  43 ±5 D
• Bend radius (moving)
  10× outer Ø
• Temperature range
  -25...+85 °C, depending on cable quality
• Outer Ø
  8.1 mm ±5%
• Material (wire isolation)
  PVC
• Test voltage
  2000 V AC
• Cable length
  10 m
• Compression gland
  M23 (SW27)
• Wire isolation
  PVC
• AWG
  similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
• Color (jacket)
  gray
• Temperature range (fixed)
  -30...+80 °C
Operating voltage
max. 125 V AC/DC
Approval (cable)
UL (AWM-Style 20549/1731), CE conform
Diameter (core)
8× 0.34 + 3× 0.75 mm²
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Acceleration (C-track)
max. 10 m/s²
Locking of ports
Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
Outer-Ø (jacket)
8.1 mm ±5%
Bend radius (fixed)
5× outer Ø
Locking material
Brass, nickel plated
Cable Type
2 (PUR/PVC)
Construction (core)
19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
Jacket Color
gray
No. of bending cycles (C-track)
max. 2 Mio. (25 °C)
Form
23151
C-track properties
2 Mio.
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Shield
no
Temperature range (mobile)
-5...+70 °C
Operating current per contact
max. 7.5 A
Cable identification
362
Color/numbering of wires
wh, vi, gn, ye, gr, pk, rd, bk+br, bl, gnye longitudinally striped
Current load capacity
to DIN VDE 0298-4
Product article number of manufacturer
7000-23151-3621000
No./diameter of wires
8× 0.34 + 3× 0.75 mm²
Single wire Ø (core)
0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
Nominal voltage
U0/U 300/300 V AC
