7000-19165-9790050 Murr Elektronik Cable Assemblies
Part#:7000-19165-9790050
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

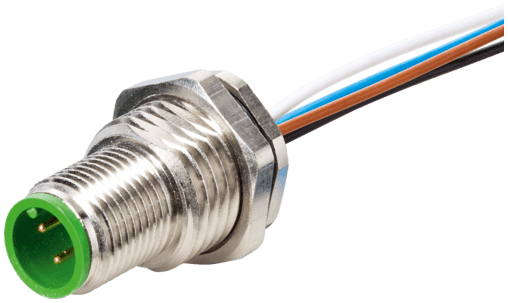

7000-19165-9790050 Murrelektronik - M12 MALE FLANGE PLUG A CODED REAR MOUNT, PP-wires 12x0,14 0.5m
Product Details
- Weight 50 g
- Series Connector Systems
- Material group IEC 60664-1, category I
- Material (contact surface) Au
- Cable length 0,5 m
- Rated surge voltage 0.8 kV
- Wire isolation PP (br, bl, wh, gn, pk, ye, bk, gr, rd, vi, grpk, rdbl)
- Product article number of manufacturer 7000-19165-9790050
- Coding A-coded
- Temperature range -25...+85 °C
- Form 19165
- Protection NEMA 3, 4, 6P (UL 50E)
- Cable number 979
- No. of poles 12
- Pollution Degree 3
- Bend radius (fixed) 5× outer Ø
- LED display no
- No./diameter of wires 12× 0.14 mm²
- Protection IP67 inserted and tightened (EN 60529)
- Outer Ø 1.25 mm ±5%
- Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
- Material (contact) Copper alloy
- Operating current per contact max. 1.5 A
- Compression gland M12 (SW14)
- Bend radius (moving) 15× outer Ø
- Locking material Brass, nickel plated
- Temperature range (mobile) -25...+85 °C
- Temperature range (fixed) -40...+85 °C
- Operating voltage max. 30 V AC/DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7000-19165-9790050 on Applied Automation is $58.50. Order now.
