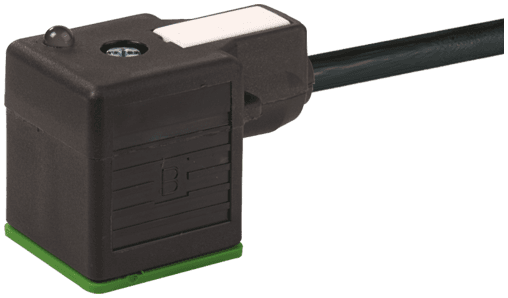

7000-18081-6160200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  148 g
• Series
  Connector Systems
• Operating voltage
  max. 230 V AC/DC
• Material (wire)
  Cu wire, bare
• Stranding combination
  3 wires twisted
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Bend radius (moving)
  10× outer Ø
• Rated surge voltage
  4.0 kV
• Approval (cable)
  CE conform
• Wire-Ø incl. isolation
  1.8 mm ±5%
• Current load capacity
  to DIN VDE 0298-4
• Material group
  IEC 60664-1, category I
• Temperature range
  -25...+85 °C, depending on cable quality
• Material (wire isolation)
  PVC
• Shore hardness (jacket)
  80 ±5 A
• Bend radius (fixed)
  5× outer Ø
• Form
  18081
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Shore hardness (wire isolation)
  43 ±5 D
• Color (jacket)
  black
Material
PBT
Diameter (core)
3× 0.75 mm²
Test voltage
3000 V AC
Locking of ports
M3 (recommended torque 0.4 Nm)
Cable Type
1 (PVC)
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Material (jacket)
PVC
Protection
IP67 inserted and tightened (EN 60529)
Cable identification
616
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Outer-Ø (jacket)
5.9 mm ±5%
Cable length
2 m
Operating current per contact
max. 10 A
Single wire Ø (core)
0.2 mm
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Temperature range (fixed)
-30...+70 °C
Housing
Black plastic (gray on request)
Cable weight [g/m]
61,6 g
Color/numbering of wires
bk numbered, gnye longitudinally striped
Nominal voltage
300/500 V AC
Pollution Degree
3
AWG
similar to AWG 18
Shield
no
Temperature range (mobile)
-5...+70 °C
Product article number of manufacturer
7000-18081-6160200
