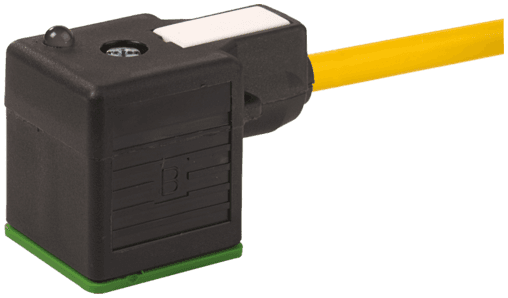

7000-18041-0160150 Murr Elektronik Cable Assemblies

Product Details

• Weight
  119 g
• Series
  Connector Systems
• Operating current per contact
  max. 4 A
• Construction (core)
  24× 0.2 mm (multi-strand wire class 5)
• Material (jacket)
  PVC
• Nominal voltage
  300/500 V AC
• Form
  18041
• Approval (cable)
  CE conform
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Shore hardness (jacket)
  80 ±5 A
• Temperature range (fixed)
  -30...+70 °C
• Operating voltage
  110 V AC/DC ±10%
• Cable Type
  1 (PVC)
• Wire-Ø incl. isolation
  1.8 mm ±5%
• Color (jacket)
  yellow
• Cable length
  1,5 m
• Switch off peak
  max. 250 V
• Material (wire)
  Cu wire, bare
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Bend radius (fixed)
  5× outer Ø
Locking of ports
M3 (recommended torque 0.4 Nm)
Cable weight [g/m]
63,8 g
Color/numbering of wires
bk numbered, gnye longitudinally striped
chemical resistance
good resistance to oil, gasoline and chemicals
Current load capacity
to DIN VDE 0298-4
Temperature range
-25...+85 °C, depending on cable quality
Resistor (core)
max. 26 Ω/km (20 °C)
Shore hardness (wire isolation)
43 ±5 D
Switch off delay time
max. 20 ms
Single wire Ø (core)
0.2 mm
Stranding combination
3 wires twisted
Test voltage
3000 V AC
Protection
IP67 inserted and tightened (EN 60529)
Diameter (core)
3× 0.75 mm²
Outer-Ø (jacket)
5.9 mm ±5%
Bend radius (moving)
10× outer Ø
Housing
Black plastic (gray on request)
AWG
similar to AWG 18
Product article number of manufacturer
7000-18041-0160150
Cable identification
016
Material (wire isolation)
PVC
Shield
no
Temperature range (mobile)
-5...+70 °C
