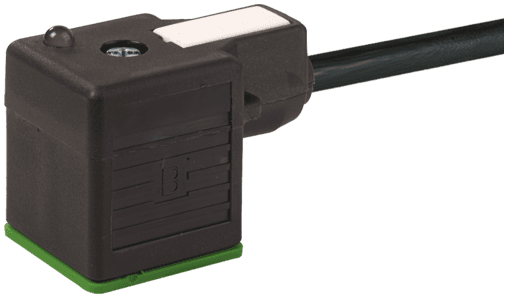

7000-18001-6160300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  201 g
• Series
  Connector Systems
• Housing
  Black plastic (gray on request)
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Stranding combination
  3 wires twisted
• Temperature range (mobile)
  -5...+70 °C
• Protection
  IP67 inserted and tightened (EN 60529)
• Temperature range
  -25...+85 °C, depending on cable quality
• AWG
  similar to AWG 18
• Material (jacket)
  PVC
• Bend radius (moving)
  10× outer Ø
• Form
  18001
• Rated surge voltage
  0.8 kV
• Diameter (core)
  3× 0.75 mm²
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Color (jacket)
  black
• Cable length
  3 m
• Locking material
  Steel (galvanized)
• Material (wire)
  Cu wire, bare
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
Test voltage
3000 V AC
LED display
LED (yellow)
Cable weight [g/m]
61,6 g
Shore hardness (wire isolation)
43 ±5 D
Current load capacity
to DIN VDE 0298-4
Material
PBT
Approval (cable)
CE conform
Wire-Ø incl. isolation
1.8 mm ±5%
Outer-Ø (jacket)
5.9 mm ±5%
Product article number of manufacturer
7000-18001-6160300
Operating voltage
24 V AC/DC ±25%
Cable identification
616
Material (wire isolation)
PVC
Shore hardness (jacket)
80 ±5 A
Bend radius (fixed)
5× outer Ø
Locking of ports
M3 (recommended torque 0.4 Nm)
Cable Type
1 (PVC)
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
chemical resistance
good resistance to oil, gasoline and chemicals
Material group
IEC 60664-1, category I
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Shield
no
Temperature range (fixed)
-30...+70 °C
Operating current per contact
max. 4 A
Pollution Degree
3
Single wire Ø (core)
0.2 mm
Nominal voltage
300/500 V AC
