7000-17162-9730050 Murr Elektronik Cable Assemblies
Part#:7000-17162-9730050
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

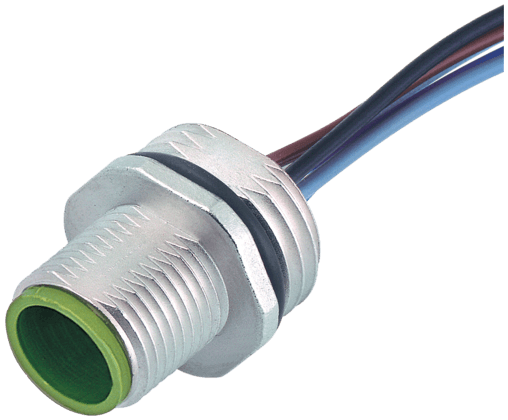

7000-17162-9730050 Murrelektronik - M12 male receptacle A-cod. front mount incl. nut, wires 8x0.25 0,5m
Product Details
- Weight 35 g
- Series Connector Systems
- No. of poles 8
- Temperature range -25...+85 °C, depending on cable quality
- Cable length 0,5 m
- Protection NEMA 3, 4, 6P (UL 50E)
- Temperature range (mobile) -25...+90 °C
- Form 17162
- Locking material Zinc die casting, matte nickel plated
- Product article number of manufacturer 7000-17162-9730050
- Protection IP67 inserted and tightened (EN 60529)
- Cable number 973
- Rated surge voltage 0.8 kV
- Temperature range (fixed) -40...+90 °C
- Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
- No./diameter of wires 8× 0.25 mm²
- Operating voltage max. 30 V AC/DC
- Compression gland M12 (SW14)
- Outer Ø 1.25 mm ±5%
- Operating current per contact max. 2 A
- Wire isolation PUR (wh, br, gn, ye, gr, pk, bl, rd)
- Coding A-coded
- suitable for corrugated tube (internal Ø) without
- Bend radius (fixed) 10× outer Ø
- Material group IEC 60664-1, category I
- Pollution Degree 3
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7000-17162-9730050 on Applied Automation is $43.55. Order now.
