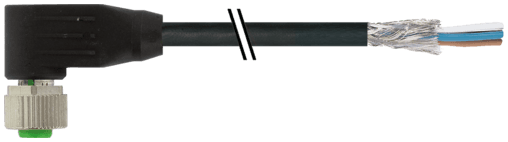

7000-13281-6431500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  877 g
• Series
  Connector Systems
• Operating current per contact
  max. 4 A
• Pollution Degree
  3
• Rated surge voltage
  1.5 kV
• Operating voltage (only UL listed)
  30 V AC/DC
• Locking material
  Zinc die casting, matte nickel plated
• C-track properties
  5 Mio.
• Material (wire isolation)
  PP
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Locking of ports
  Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
• Compression gland
  M12 (SW13)
• Material (contact)
  Copper alloy
• Cable identification
  643
• Color/numbering of wires
  br, bk, bl, wh, gr
• Jacket Color
  black
• Coding
  A-coded
• Protection
  IP65, IP66K, IP67 inserted and tightened (EN 60529)
• Cable Type
  3 (PUR)
• Shore hardness (wire isolation)
  70 ±5 D
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Current load capacity
to DIN VDE 0298-4
Torsion speed
35 cycles/min
Form
13281
Standards
DIN EN 61076-2-101 (M12)
No./diameter of wires
5× 0.34 mm²
Diameter (core)
5× 0.34 mm²
Shield
yes
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Acceleration (C-track)
max. 5 m/s²
Material group
IEC 60664-1, category I
suitable for corrugated tube (internal Ø)
without
Temperature range
-25...+85 °C, depending on cable quality
Cable weight [g/m]
57,2 g
Shield (Type)
Copper braid
Shore hardness (jacket)
90 ±5 A
Bend radius (moving)
10× outer Ø
Operating voltage
max. 60 V AC/DC
Material
PUR
Stripping length (jacket)
20 mm
Material (wire)
Cu wire, bare
Wire-Ø incl. isolation
1.25 mm ±5%
Test voltage
2000 V AC
Torsion stress
±30°/m
No. of poles
5
Mounting method
inserted, tightened
Outer Ø
5.6 mm ±5%
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Color (jacket)
black
Nominal voltage
300 V AC
Bend radius (fixed)
5× outer Ø
LED display
no
Material (gasket)
FKM
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Outer-Ø (jacket)
5.6 mm ±5%
No. of bending cycles (C-track)
max. 5 Mio. (25 °C)
Product article number of manufacturer
7000-13281-6431500
Material (contact surface)
Au
Wire isolation
PP (br, wh, bl, bk, gr)
Single wire Ø (core)
0.1 mm
AWG
similar to AWG 22
Material (jacket)
PUR
Travel speed (C-track)
max. 3.3 m/s
Resistor (core)
max. 57 Ω/km (20 °C)
Stranding combination
5 wires twisted around central filler
Temperature range (fixed)
-40...+80 °C
Temperature range (mobile)
-25...+80 °C
Cable length
15 m
No. of torsion cycles
max. 2 Mio. (25 °C)
