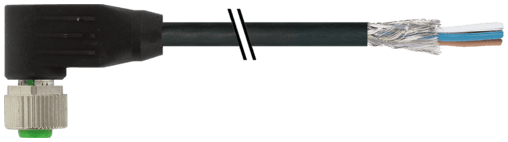

7000-13261-6410200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  120 g
• Series
  Connector Systems
• Material group
  IEC 60664-1, category I
• Wire isolation
  PP (br, wh, bl, bk)
• Color/numbering of wires
  br, bk, bl, wh
• No. of bending cycles (C-track)
  max. 5 Mio. (25 °C)
• Rated surge voltage
  1.5 kV
• No./diameter of wires
  4× 0.34 mm²
• Construction (core)
  42× 0.1 mm (multi-strand wire class 6)
• Stranding combination
  4 wires twisted
• Test voltage
  2000 V AC
• Bend radius (fixed)
  5× outer Ø
• Operating voltage (only UL listed)
  max. 30 V AC/DC
• Locking material
  Zinc die casting, matte nickel plated
• Temperature range (mobile)
  -25...+80 °C
• Cable length
  2 m
• Form
  13261
• Outer Ø
  5.3 mm ±5%
• Shield (Type)
  Copper braid
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Travel speed (C-track)
max. 3.3 m/s
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Standards
DIN EN 61076-2-101 (M12)
Resistor (core)
max. 57 Ω/km (20 °C)
Shore hardness (wire isolation)
70 ±5 D
Jacket Color
black
Torsion stress
±30°/m
Coding
A-coded
Cable weight [g/m]
50,6 g
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Current load capacity
to DIN VDE 0298-4
Product article number of manufacturer
7000-13261-6410200
Operating voltage
max. 60 V AC/DC
Compression gland
M12 (SW13)
Cable identification
641
Single wire Ø (core)
0.1 mm
AWG
similar to AWG 22
Material (jacket)
PUR
Outer-Ø (jacket)
5.3 mm ±5%
Temperature range (fixed)
-40...+80 °C
Acceleration (C-track)
max. 5 m/s²
Material
PUR
Temperature range
-25...+85 °C, depending on cable quality
Cable Type
3 (PUR)
Material (wire isolation)
PP
Wire-Ø incl. isolation
1.25 mm ±5%
Shield
yes
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
No. of torsion cycles
max. 2 Mio. (25 °C)
Operating current per contact
max. 4 A
Pollution Degree
3
Material (wire)
Cu wire, bare
Color (jacket)
black
Nominal voltage
300 V AC
Torsion speed
35 cycles/min
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
C-track properties
5 Mio.
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Diameter (core)
4× 0.34 mm²
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Shore hardness (jacket)
90 ±5 A
Bend radius (moving)
10× outer Ø
