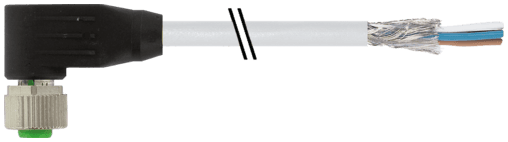

7000-13261-3300750 Murr Elektronik Cable Assemblies

Product Details

• Weight
  423 g
• Series
  Connector Systems
• Rated surge voltage
  1.5 kV
• Locking material
  Zinc die casting, matte nickel plated
• Bend radius (moving)
  15× outer Ø
• Shield
  yes
• Material
  PUR
• Outer Ø
  5.9 mm ±5%
• Temperature range (mobile)
  -5...+70 °C
• Cable length
  7,5 m
• Form
  13261
• Pollution Degree
  3
• Bend radius (fixed)
  5× outer Ø
• Locking of ports
  Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
• Compression gland
  M12 (SW13)
• Temperature range
  -25...+85 °C, depending on cable quality
• Jacket Color
  gray
• Operating current per contact
  max. 4 A
• No./diameter of wires
  4× 0.34 mm²
• Temperature range (fixed)
  -25...+80 °C
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Material group
IEC 60664-1, category I
Wire isolation
PVC (br, wh, bl, bk)
Product article number of manufacturer
7000-13261-3300750
Coding
A-coded
Standards
DIN EN 61076-2-101 (M12)
Material (jacket)
PVC
Operating voltage
max. 60 V AC/DC
Cable number
330
Operating voltage (only UL listed)
max. 30 V AC/DC
Approval (cable)
CE conform
Color (jacket)
gray
