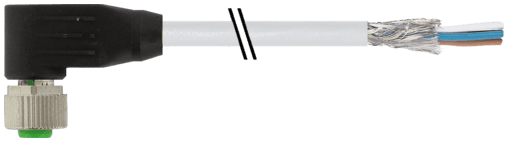

7000-13241-3180500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  272 g
• Series
  Connector Systems
• Operating voltage (only UL listed)
  max. 30 V AC/DC
• Temperature range
  -25...+85 °C, depending on cable quality
• Approval (cable)
  CE conform
• Product article number of manufacturer
  7000-13241-3180500
• Coding
  A-coded
• Pollution Degree
  3
• Temperature range (fixed)
  -30...+80 °C
• Operating voltage
  max. 60 V AC/DC
• Shield
  yes
• Operating current per contact
  max. 4 A
• Outer Ø
  5.9 mm ±5%
• Bend radius (moving)
  15× outer Ø
• Rated surge voltage
  1.5 kV
• Compression gland
  M12 (SW13)
• Stripping length (jacket)
  20 mm
• Material (jacket)
  PUR/PVC
• Locking of ports
  Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
• Material
  PUR
Cable number
318
Jacket Color
gray
Form
13241
Standards
DIN EN 61076-2-101 (M12)
Color (jacket)
gray
Material group
IEC 60664-1, category I
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Mounting method
inserted, tightened
No./diameter of wires
3× 0.34 mm²
Bend radius (fixed)
10× outer Ø
Cable length
5 m
Locking material
Zinc die casting, matte nickel plated
Wire isolation
PVC (br, bl, bk)
Temperature range (mobile)
-5...+70 °C
