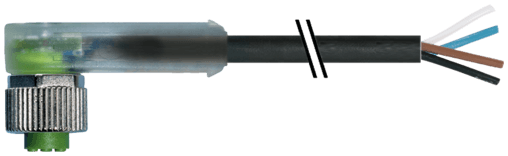

7000-12401-6332000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  620 g
• Series
  Connector Systems
• Rated surge voltage
  0.8 kV
• Resistor (core)
  max. 57 Ω/km (20 °C)
• Color/numbering of wires
  br, bk, bl
• Nominal voltage
  300 V AC
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Material
  PUR
• Single wire Ø (core)
  0.1 mm
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• suitable for corrugated tube (internal Ø)
  10 mm
• Standards
  DIN EN 61076-2-101 (M12)
• Material property (wire isolation)
  CFC-, halogen-, cadmium-, silicone- and lead-free
• Shield
  no
• Test voltage
  2500 V AC
• Torsion stress
  ±180°/m
• Locking of ports
  Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
• Cable Type
  3 (PUR)
• AWG
  similar to AWG 22
Material (jacket)
PUR
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Operating current per contact
max. 4 A
Cable identification
633
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Wire-Ø incl. isolation
1.25 mm ±5%
Acceleration (C-track)
max. 10 m/s²
Operating voltage
24 V DC ±25%
Material group
IEC 60664-1, category I
Material (wire)
Cu wire, bare
Material (wire isolation)
PP
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Bend radius (fixed)
5× outer Ø
Form
12401
Locking material
Zinc die casting, matte nickel plated
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Stranding combination
3 wires twisted
Shore hardness (jacket)
90 ±5 A
Travel speed (C-track)
max. 3 m/s
LED display
(yellow/green)
Temperature range
-25...+85 °C, depending on cable quality
Color (jacket)
black
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Product article number of manufacturer
7000-12401-6332000
Operating voltage (only UL listed)
max. 30 V DC
Compression gland
M12 (SW13)
Cable weight [g/m]
29,7 g
Diameter (core)
3× 0.34 mm²
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Bend radius (moving)
10× outer Ø
Torsion speed
35 cycles/min
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Pollution Degree
3
Shore hardness (wire isolation)
70 ±5 D
Outer-Ø (jacket)
4.1 mm ±5%
Current load capacity
to DIN VDE 0298-4
Cable length
20 m
