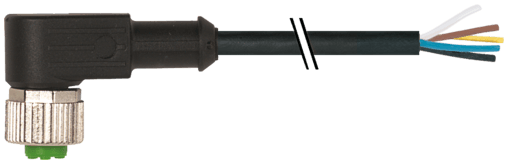

7000-12361-7320500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  195 g
• Series
  Connector Systems
• Product article number of manufacturer
  7000-12361-7320500
• Cable length
  5 m
• Torsion speed
  35 cycles/min
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Torsion stress
  ±180°/m
• Travel speed (C-track)
  max. 3 m/s
• Acceleration (C-track)
  max. 10 m/s²
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Bend radius (moving)
  10× outer Ø
• Temperature range (fixed)
  -40...+80 °C, (+90 °C at max. 10 000 operating hours)
• Current load capacity
  to DIN VDE 0298-4
• Test voltage
  2500 V AC
• Bend radius (fixed)
  5× outer Ø
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Nominal voltage
  300 V AC
• Shield
  no
Color (jacket)
black
Outer-Ø (jacket)
4.8 mm ±5%
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Shore hardness (jacket)
90 ±5 A
Stranding combination
5 wires twisted around central filler
Material (jacket)
PUR
Shore hardness (wire isolation)
70 ±5 D
Color/numbering of wires
br, bk, bl, wh, gr
Wire-Ø incl. isolation
1.25 mm ±5%
Diameter (core)
5× 0.34 mm²
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
AWG
similar to AWG 22
Material (wire isolation)
PP
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Single wire Ø (core)
0.1 mm
Material (wire)
Cu wire, bare
Resistor (core)
max. 57 Ω/km (20 °C)
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Standards
DIN EN 61076-2-101 (M12)
Cable weight [g/m]
41,8 g
Cable Type
3 (PUR)
Pollution Degree
3
Cable identification
732
Temperature range
-25...+85 °C, depending on cable quality
Compression gland
M12 (SW13)
Locking material
Zinc die casting, matte nickel plated
suitable for corrugated tube (internal Ø)
10 mm
Material
PUR
Form
12361
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Coding
A-coded
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Material group
IEC 60664-1, category I
Operating current per contact
max. 4 A
Rated surge voltage
1.5 kV
Operating voltage
max. 125 V AC/DC
Operating voltage (only UL listed)
max. 30 V AC/DC
