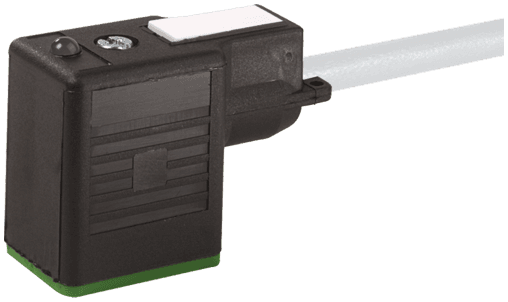

7000-11021-2161000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  584 g
• Series
  Connector Systems
• Current consumption
  max. 15 mA
• Housing
  Black plastic (gray on request)
• Material (wire)
  Cu wire, bare
• Material (wire isolation)
  PVC
• Temperature range (fixed)
  -30...+70 °C
• Form
  11021
• Pollution Degree
  3
• Single wire Ø (core)
  0.2 mm
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Outer-Ø (jacket)
  5.9 mm ±5%
• Material group
  IEC 60664-1, category I
• Approval (cable)
  CE conform
• AWG
  similar to AWG 18
• Shore hardness (jacket)
  80 ±5 A
• Bend radius (moving)
  10× outer Ø
• Material
  PBT
• Cable Type
  1 (PVC)
• Shore hardness (wire isolation)
  43 ±5 D
Color (jacket)
gray
Product article number of manufacturer
7000-11021-2161000
Switch off peak
max. 55 V
Switch off delay time
max. 20 ms
Cable weight [g/m]
63,8 g
Material (jacket)
PVC
Temperature range (mobile)
-5...+70 °C
Operating current per contact
max. 4 A
Locking material
Steel (galvanized)
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Test voltage
3000 V AC
Rated surge voltage
0.8 kV
Additional suppressor
Diode/Z-Diode
Diameter (core)
3× 0.75 mm²
Stranding combination
3 wires twisted
Bend radius (fixed)
5× outer Ø
Operating voltage
24 V AC ±20% / DC ±25%
Material (gasket)
PUR
Cable identification
216
Wire-Ø incl. isolation
1.8 mm ±5%
Current load capacity
to DIN VDE 0298-4
Locking of ports
M3 (recommended torque 0.4 Nm)
Protection
IP67 inserted and tightened (EN 60529)
Resistor (core)
max. 26 Ω/km (20 °C)
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Nominal voltage
300/500 V AC
LED display
yellow
Temperature range
-25...+85 °C, depending on cable quality
Shield
no
chemical resistance
good resistance to oil, gasoline and chemicals
Cable length
10 m
