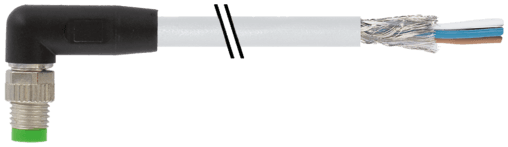

7000-08721-2000750 Murr Elektronik Cable Assemblies

Product Details

• Weight
  445 g
• Series
  Connector Systems
• Operating voltage (only UL listed)
  max. 30 V AC/DC
• Resistor (core)
  max. 57 Ω/km (20 °C)
• Material (jacket)
  PVC
• Test voltage
  2000 V AC
• Mounting method
  inserted, tightened
• Diameter (core)
  3× 0.34 mm²
• Shield (Type)
  Copper braid
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Operating voltage
  max. 50 V AC/60 V DC
• Cable Type
  1 (PVC)
• Shore hardness (wire isolation)
  45 ±5 D
• Shore hardness (jacket)
  85 ±5 A
• Bend radius (fixed)
  10× outer Ø
• Protection
  IP65, IP66K, IP67 inserted and tightened (EN 60529)
• Standards
  DIN EN 61076-2-104 (M8)
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Shield
  yes
• chemical resistance
  good resistance to oil, gasoline and chemicals
Compression gland
M8 (SW9)
Temperature range
-25...+85 °C, depending on cable quality
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Outer-Ø (jacket)
5.0 mm ±5%
Product article number of manufacturer
7000-08721-2000750
suitable for corrugated tube (internal Ø)
6.5 mm
Pollution Degree
3
Single wire Ø (core)
0.15 mm
thermal resistance
flammwidrig nach UL 1581 VW1 / CSA FT1 / IEC 60332-1-2
Rated surge voltage
1.5 kV
Cable weight [g/m]
52,8 g
AWG
similar to AWG 22
Color/numbering of wires
br, bk, bl
Temperature range (fixed)
-30...+80 °C
Form
08721
Approval (cable)
UL (AWM-Style 2464/1731), CSA
Wire-Ø incl. isolation
1.25 mm ±5%
Color (jacket)
gray
Temperature range (mobile)
-5...+80 °C
Locking of ports
Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing
Cable identification
200
Material (wire isolation)
PVC
Current load capacity
to DIN VDE 0298-4
Operating current per contact
max. 4 A
Material (wire)
Cu wire, bare
Stranding combination
3 wires twisted
Nominal voltage
300 V AC
Cable length
7,5 m
