7000-08601-0000000 Murr Elektronik Cable Assemblies
Part#:7000-08601-0000000
Alt. Part#:7000-08325-0000000
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

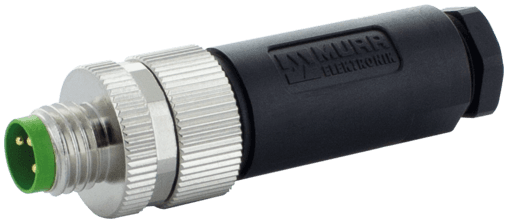

7000-08601-0000000 Murrelektronik - M8 MALE 0° FIELD-WIREABLE SCREW TERM., 3-pol. 0,14...0.5mm²
Product Details
- Weight 12 g
- Series Connector Systems
- Operating voltage max. 50 V AC/60 V DC
- Pollution Degree 3
- No. of poles 3-pole
- Material (contact) Brass, gold plated
- Connection Screw terminal
- Temperature range -40...+85 °C
- Sealing range (cable Ø) 2.5...5.0 mm
- Material (contact carrier) PA66
- Coding A-coded
- Material (housing) PBT
- Protection IP67 inserted and tightened (EN 60529)
- Product article number of manufacturer 7000-08601-0000000
- Operating current per contact max. 4 A
- Isolation resistance > 100 MOhm
- Form 08601
- Over voltage category II
- Material group III
- Compression gland M8 (AF12,5)
- Connection cross section 0.14...0.5 mm²
- Dimensions H×W×D 45x13,5x13,5 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7000-08601-0000000 on Applied Automation is $26.95. Order now.
7000-08601-0000000 Related Documents
Manufacturer warranty
7000-08601-0000000 Murr Elektronik
$26.95
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$26.95
$26.95 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 7000-08601-0000000 with other Cable Assemblies products
Weight
Series
Operating voltage
Pollution Degree
No. of poles
Material (contact)
Connection
Temperature range
Sealing range (cable Ø)
Material (contact carrier...
Selected product
7000-08601-0000000
Murr Elektronik
7000-08601-0000000 Murrelektronik - M8 MALE 0° FIELD-WIREABLE SCREW TERM., 3-pol. 0,14...0.5mm²
Weight12 g
SeriesConnector Systems
Operating voltagemax. 50 V AC/60 V DC
Pollution Degree3
No. of poles3-pole
Material (contact)Brass, gold plated
ConnectionScrew terminal
Temperature range-40...+85 °C
Sealing range (cable Ø)2.5...5.0 mm
Material (contact carrier)PA66
Weight-
Series-
Operating voltage-
Pollution Degree-
No. of poles-
Material (contact)-
Connection-
Temperature range-
Sealing range (cable Ø)-
Material (contact carrier)-
About the manufacturer
Applied Automation is an authorized Murr Elektronik distributor, offering a robust selection of high-quality components engineered to drive efficiency and innovation in industrial applications. Murr Elektronik, a leader in the electronics industry, specializes in providing sophisticated automation solutions that cater to diverse sectors by integrating cutting-edge technology with unmatched enginee...
Recently viewed products
Relevant products
FAQ
What is the price of 7000-08601-0000000?
Purchase the 7000-08601-0000000 from Applied Automation at the price of $26.95. Order today.
Out if stock but available for backorder.
7000-08601-0000000 Murrelektronik - M8 MALE 0° FIELD-WIREABLE SCREW TERM., 3-pol. 0,14...0.5mm²
