6652561 Murr Elektronik Control Circuits
Part#:6652561
Alt. Part#:52561
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

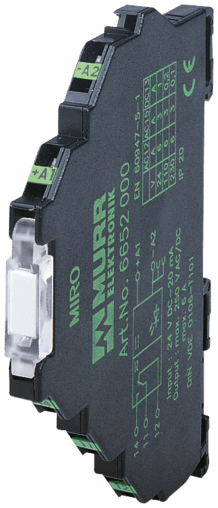

6652561 Murrelektronik - MIRO 6.2MM OPTO-COUPLER MODULE WITH ISOLATION LINK, IN: 53 VDC - OUT: 250 VAC / 0,5A, 6,2 mm spring clamp
Product Details
- Weight 22 g
- Series Interface Modules
- Switching time ON/OFF 10/10 ms
- Product article number of manufacturer 6652561
- Mounting method DIN-rail mountable (EN 60715)
- Temperature range -20...+60 °C
- Switching current per output 2 mA...0.5 A
- Switching voltage 24...250 V AC
- Test isolation voltage 2.5 kV
- Control current 7 mA
- Switching frequency max. 20/1 Hz (resist./ind.)
- Housing Black plastic, flame retardant
- Leakage current (output is open) max. 0.3 mA
- Voltage range ON 10...53 V DC
- Saturation voltage (across output) max. 1.5 V AC
- Voltage range OFF 0...5 V DC
- Dimensions H×W×D 78×6.2×70 mm
- LED display LED (yellow)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 6652561 on Applied Automation is $81.95. Order now.
6652561 Related Documents
Similar products from: Murr Elektronik Control Circuits
Manufacturer warranty
6652561 Murr Elektronik
$81.95
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$81.95
$81.95 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 6652561 with other Control Circuits products
Weight
Series
Switching time ON/OFF
Product article number of...
Mounting method
Temperature range
Switching current per out...
Switching voltage
Test isolation voltage
Control current
Selected product
6652561
Murr Elektronik
6652561 Murrelektronik - MIRO 6.2MM OPTO-COUPLER MODULE WITH ISOLATION LINK, IN: 53 VDC - OUT: 250 V...
Weight22 g
SeriesInterface Modules
Switching time ON/OFF10/10 ms
Product article number of manufacturer6652561
Mounting methodDIN-rail mountable (EN 60715...
Temperature range-20...+60 °C
Switching current per output2 mA...0.5 A
Switching voltage24...250 V AC
Test isolation voltage2.5 kV
Control current7 mA
3000-32512-2100010
Murr Elektronik
3000-32512-2100010 Murrelektronik - MIRO 6.2 PLUGGABLE COMPL. MODULE OPTO-COUPLER, IN: 24 VDC - OUT:...
Weight30 g
SeriesInterface Modules
Switching time ON/OFF-
Product article number of manufacturer-
Mounting method-
Temperature range-
Switching current per output-
Switching voltage-
Test isolation voltage-
Control current-
About the manufacturer
Applied Automation is an authorized Murr Elektronik distributor, offering a robust selection of high-quality components engineered to drive efficiency and innovation in industrial applications. Murr Elektronik, a leader in the electronics industry, specializes in providing sophisticated automation solutions that cater to diverse sectors by integrating cutting-edge technology with unmatched enginee...
About the Product Category
A control circuit is an essential part of electrical systems that allows for the control and management of various electrical devices. It acts as a relay point between a power source and devices, receiving input from sensors and sending instructions to control the actions of connected devices.
Recently viewed products
Relevant products
FAQ
What is the price of 6652561?
Purchase the 6652561 from Applied Automation at the price of $81.95. Order today.
Out if stock but available for backorder.
6652561 Murrelektronik - MIRO 6.2MM OPTO-COUPLER MODULE WITH ISOLATION LINK, IN: 53 VDC - OUT: 250 VAC / 0,5A, 6,2 mm spring clamp
