6652370 Murr Elektronik Control Circuits
Part#:6652370
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

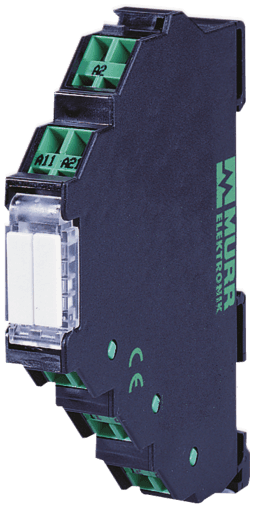

6652370 Murrelektronik - MIRO 12.4 MULTI-TIMER, IN: 24 VAC/DC / 230 VAC - OUT: 230 VAC/DC / 6A, 1 C/O contact / 12,4 mm spring clamp
Product Details
- Weight 40 g
- Series Interface Modules
- Temperature range -25...+60 °C
- Product article number of manufacturer 6652370
- Output rating max. 1500 VA/120 W
- Mech./ elect. life 20 000 000 switching cycles/load dependent
- Energize/release/contact bounce time 8/10/2 ms
- Input current 12 mA (24 V DC)
- Test isolation voltage 4.8 kV
- Control current 2 mA
- Input voltage 24 V AC/DC or 230 V AC (±15%)
- Min. load current 8 mA (24 V DC)
- Contact material Ag Sn O2
- Output current max. 6 A
- Mounting method DIN-rail mountable (EN 60715)
- Output voltage max. 230 V AC/DC
- Control voltage 24 V AC/DC or 230 V AC (±15%)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 6652370 on Applied Automation is $179.15. Order now.
