6652050 Murr Elektronik Control Circuits
Part#:6652050
Alt. Part#:52050
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

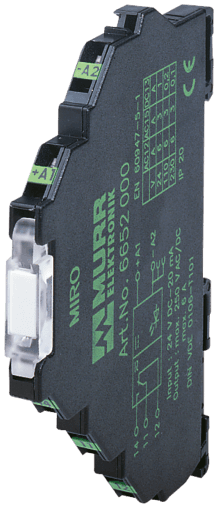

6652050 Murrelektronik - MIRO 6.2 OUTPUT RELAY, IN: 12 VDC - OUT: 230 VAC/DC/ 6A, 1 C/O contact - 6,2 mm spring clamp
Product Details
- Weight 26 g
- Series Interface Modules
- Mounting method DIN-rail mountable (EN 60715)
- Dimensions H×W×D 91×6.2×70 mm
- LED display LED (green)
- Contact material Ag Sn O2
- Mech./ elect. life 20 000 000 switching cycles/load dependent
- Power rating (voltage dependent) max. 1500 VA/120 W
- Connection voltage - current 12 V DC (10...15 V DC) - 20 mA
- DC-13 1 A (24 V DC); 0.2 A (110 V DC); 0.1 A (230 V DC)
- Energize/release/contact bounce time 10/15/1.5 ms
- AC-12 6 A (24/110/230 V AC)
- Switching current per output max. 6 A
- Test isolation voltage 4 kV; safe separation (EN 60947-1)
- Switching frequency max. 10 Hz
- Switching voltage max. 250 V AC/DC
- AC-15 3 A (24/110/230 V AC)
- Temperature range -25...+60 °C
- Min. load current 10 mA (12 V DC)
- Product article number of manufacturer 6652050
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 6652050 on Applied Automation is $47.60. Order now.
