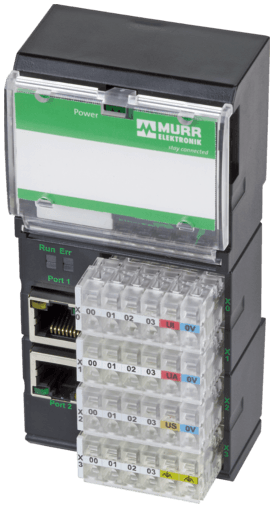

56913 Murr Elektronik I/O Systems

Product Details

• Weight
  190 g
• Series
  Field Bus System
• Sensor supply US
  24 V DC (EN 61131-2), max. 700 mA per module, short-circuit and overload protected
• Diagnostic via LED
  per module and channel
• Dimensions H×W×D
  117×56×47 mm
• Product article number of manufacturer
  56913
• Type
  for 3-wire sensors or mechanical switches, PNP
• I/O ports
  18× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
• Switching current per output
  max. 2 A (short-circuit and overload protected)
• Addressing
  automatic
• Protection
  IP20
• Monitoring - no voltage
  yes
• Temperature range
  0...+55 °C (storage temperature -20...+70 °C)
• Monitoring - under voltage
  yes
• Mounting method
  DIN-rail mountable (EN 60715)
• Fieldbus
  Ethernet 10/100 Mbit/s; 2× RJ45 (female)
• Sensor-system/actuator supply
  6× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
• Operating voltage
  24 V DC (EN 61131-2)
• Communication status
  via LED
• Short-circuit and overload
  yes
Total current
max. 8 A
Diagnostic via BUS
per module and channel
