55528 Murr Elektronik I/O Systems
Part#:55528
Manufacturer:Murr Elektronik
Category:I/O Systems
Product Lifecycle:Active
Product description

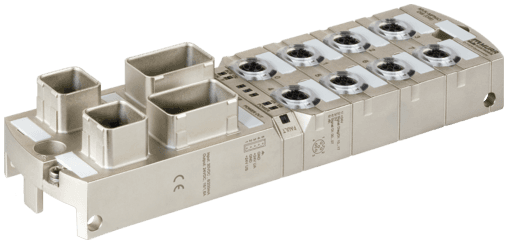

55528 Murrelektronik - MVK+ MPNIO DI8 DI8 IRT PUSH PULL, MVK ProfiNet, metal, galvanic separation, Push-Pull RJ45, Energy via Push-Pull 5-pol., Fast-Start-Up, LLDP, MRP, Shared Device, IRT-Switch
Product Details
- Weight 1030 g
- Series Field Bus System
- Sensor-system/actuator supply Push Pull Power connector, max. 12 A
- Monitoring - no voltage yes
- Type for 3-wire sensors or mechanical switches, PNP
- PROFINET Netload Class III
- Dimensions H×W×D 42.7×63×225 mm
- Specification V2.2, Conformance Class C (IRT)
- Communication status via LED
- Sensor supply US 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
- Product article number of manufacturer 55528
- Diagnostic via BUS per module and channel
- Mounting method 2-hole screw mounting
- Addressing DCP
- Cable break per port
- PIN 2 Input
- Shared Device yes, for 2 controls
- Temperature range 0...+55 °C (storage temperature -20...+70 °C)
- I/O ports M12, 5-pole, A-coded
- Monitoring - under voltage yes
- PIN 4 Input
- FSU (Fast-Start-Up) max. 500 ms
- Short-circuit and overload yes
- Fieldbus Ethernet 10/100 Mbit/s; Push Pull RJ45 Data connector
- MRP yes
- Diagnostic via LED per module and channel
- Protection IP67
- Actuator warning per channel via LED and BUS
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 55528 on Applied Automation is $1,090.10. Order now.
