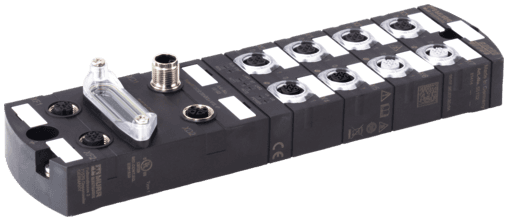

55152 Murr Elektronik I/O Systems

Product Details

• Series
  Field Bus System
• Actuator supply UA
  24 V DC (EN 61131-2), max. 9 A
• Type
  for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
• Port Class
  Class B (not galvanically separated)
• Sensor-system/actuator supply
  M12 Power, 4-pole, L-coded, 2× max. 16 A
• Protection
  IP67
• Transfer parameters
  32 Byte (In) 32 Byte (Out) per IO-Link port
• IO-Link
  4× Master
• Addressing
  DCP
• Communication status
  via LED
• Shared Device
  yes, for 2 controls
• Sensor supply US
  24 V DC (EN 61131-2), max. 200 mA (M12 female)/max. 1 A (IO-Link female), short-circuit and overload protected
• PIN 2
  Input/Output (port X0...X7); U-Actuator IO-Link Class B (port X4...X7)
• FSU (Fast-Start-Up)
  max. 500 ms
• Cable break
  per port
• Actuator warning
  per channel via LED and BUS
• Dimensions H×W×D
  37×63×225 mm
• Operating modes
  COM1; COM2; COM3 (automatic)
• PROFINET Netload Class
  III
• Monitoring - under voltage
  yes
Lamp load
10 W
Specification
V2.3, Conformance Class C (IRT)
Diagnostic via LED
per module and channel
Temperature range
-25...+55 °C (storage temperature -25...+70 °C)
Mounting method
2-hole screw mounting, compatible with I/O modules of MVK model range
Fieldbus
Ethernet 10/100 Mbit/s; M12, D-coded
I/O ports
M12, 5-pole, A-coded
Diagnostic via BUS
per module and channel
Monitoring - no voltage
yes
Switching current per output
max. 1.6 A (short-circuit and overload protected)
PIN 4
Input/Output (port X0...X7); IO-Link Master (port X4...X7)
Product article number of manufacturer
55152
