51552 Murr Elektronik Control Circuits
Part#:51552
Alt. Part#:52030
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

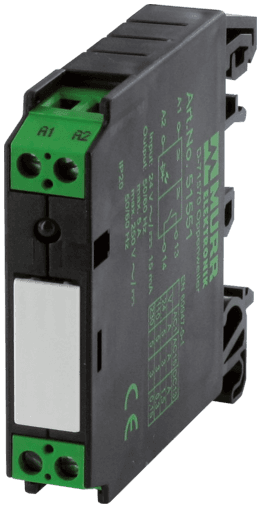

51552 Murrelektronik - RMM 11/110 AC OUTPUT RELAY, IN: 110 VAC/DC - OUT: 250 VAC/DC / 6 A, 1 N/O contact - 12 mm screw-type termina
Product Details
- Weight 33 g
- Series Interface Modules
- Min. load current 100 mA
- AC-15 4 A (24/110/230 V AC)
- Energize/release/contact bounce time 10/15/1.5 ms
- Switching current per output max. 6 A
- Test isolation voltage 4.0 kV
- Connection voltage - current 110 V AC/DC (95...121 V AC/DC) - 3.5 mA
- Switching voltage max. 250 V AC/DC
- Switching frequency max. 10 Hz
- Product article number of manufacturer 51552
- Contact material Ag Ni 0.15 hv; Ag hv
- DC-13 2 A (24 V DC); 0.25 A (110 V DC); 0.1 A (230 V DC)
- Mounting method DIN-rail mountable TH35 or G32 (EN 60715)
- AC-12 6 A (24/110/230 V AC)
- Temperature range -20...+60 °C
- LED display LED (red)
- Mech./ elect. life 20 000 000 switching cycles/load dependent
- Power rating (voltage dependent) max. 1250 VA/240 W
- Dimensions H×W×D 56×12×65 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 51552 on Applied Automation is $54.10. Order now.
