51551 Murr Elektronik Control Circuits
Part#:51551
Alt. Part#:51851
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

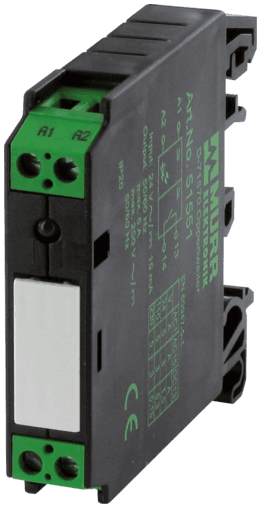

51551 Murrelektronik - RMM 11/24 OUTPUT RELAY, IN: 24 VAC/DC - OUT: 250 VAC/DC / 5 A, 1 N/O contact - 12 mm screw-type terminal
Product Details
- Weight 30.24 g
- Series Interface Modules
- Energize/release/contact bounce time 10/15/1.5 ms
- AC-15 3 A (24/110/230 V AC)
- Switching voltage max. 250 V AC/DC
- Switching current per output max. 5 A
- Min. load current 100 mA
- Power rating (voltage dependent) max. 1250 VA/240 W
- Contact material Ag Ni 0.15 hv; Ag hv
- Switching frequency max. 10 Hz
- LED display LED (red)
- DC-13 1.5 A (24 V DC); 0.3 A (110 V DC); 0.15 A (230 V DC)
- Mounting method DIN-rail mountable TH35 or G32 (EN 60715)
- Mech./ elect. life 20 000 000 switching cycles/load dependent
- Temperature range -20...+50 °C
- Dimensions H×W×D 56×12×65 mm
- Product article number of manufacturer 51551
- Connection voltage - current 24 V AC/DC (19.2...30 V AC/DC) - 15 mA
- AC-1 5 A (24/110/230 V AC)
- Test isolation voltage 4.0 kV
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 51551 on Applied Automation is $42.90. Order now.
