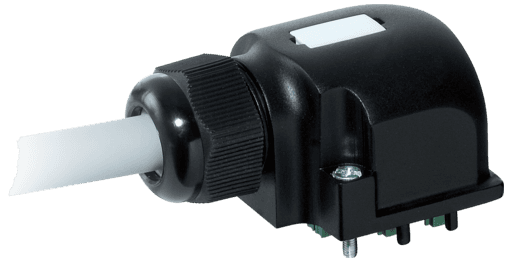

4027036 Murr Elektronik Electrical Connector Accessories

Product Details

• Weight
  1262 g
• Series
  Distribution Systems
• No./diameter of wires
  16× 0.34 + 3× 0.75 mm²
• Shore hardness (wire isolation)
  43 ±5 D
• Current load capacity
  to DIN VDE 0298-4
• Product article number of manufacturer
  4027036
• C-track properties
  2 Mio.
• AWG
  similar to AWG 22 (0.34 mm²); similar to AWG 19 (0.75 mm²)
• Temperature range (mobile)
  -5...+60 °C
• Cable Type
  2 (PUR/PVC)
• Resistor (core)
  max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Jacket Color
  gray
• Cable identification
  398
• Approval (cable)
  UL (AWM-Style 21441/10955), CE conform
• Material (jacket)
  PUR/PVC
• Bend radius (moving)
  10× outer Ø
• Outer Ø
  10.0 mm ±5%
• Construction (core)
  19× 0.15 mm (0.34 mm²); 42× 0.15 mm (0.75 mm²); (multi-strand wire class 5/6)
• Outer-Ø (jacket)
  10.0 mm ±5%
Bend radius (fixed)
5× outer Ø
Cable number
398
Single wire Ø (core)
0.15 mm
Color/numbering of wires
wh, grpk, brgn, ye, whgn, gn, rdbl, vi, grbr, bk, whgr, rd, yebr, pk, whye, gr+bl, br, gnye longitudinally striped
Nominal voltage
U0/U 300/300 V AC
Total current
max. 8 A
Shield
no
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Acceleration (C-track)
max. 10 m/s²
Cable weight [g/m]
165 g
Material (wire isolation)
PVC
Color (jacket)
gray
No. of bending cycles (C-track)
max. 2 Mio. (25 °C)
Dimensions H×W×D
33×48×68 mm
Material (wire)
Cu wire, bare
Shore hardness (jacket)
87 ±5 A
Temperature range (fixed)
-30...+80 °C
Wire isolation
PVC
Diameter (core)
16× 0.34 + 3× 0.75 mm²
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
Test voltage
2000 V AC
Travel speed (C-track)
max. 2 m/s
