PQS-FC08P Clippard Electronic Components
Part#:PQS-FC08P
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Oct 9, 2026
Product description

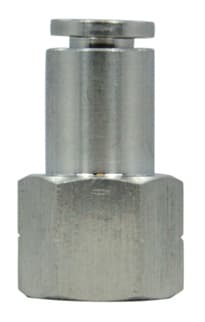

S/S Push-Quick Female Connector, 1/4", 1/8" NPT, Provides a simple method of connecting pneumatic components to each other and system piping.
Product Details
- Medium Air, Inert Gas, Water, Liquid, Oil
- Vacuum 0 to 29.5" Hg
- Operating Temperature Range 5 to 230°F (-15 to 110°C)
- Force Tube Pull-Out Force @ 75°F (non-pressurized): 1/8" - 5/32": >10 lb.; 1/4" - 1/2": >20 lb.
- Thread 1/8" NPT Thread
- Material, Body 316 Stainless Steel
- Tubing 1/4" OD Tubing
- Material, Seals FKM
- Max. psig 250 psig
- Operating Pressure 0 to 250 psig @ 75°F
- Weight 0.0500
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PQS-FC08P on Applied Automation is $13.49. Order now.
PQS-FC08P Related Documents
Similar products from: Clippard Electronic Components
This item can ship in 3-5 days!
Manufacturer warranty
PQS-FC08P Clippard
$13.49
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$13.49
$13.49 each
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare PQS-FC08P with other Electronic Components products
Medium
Vacuum
Operating Temperature Ran...
Force
Thread
Material, Body
Tubing
Material, Seals
Max. psig
Operating Pressure
Selected product
PQS-FC08P
Clippard
S/S Push-Quick Female Connector, 1/4", 1/8" NPT, Provides a simple method of connecting pneumatic co...
MediumAir, Inert Gas, Water, Liqui...
Vacuum0 to 29.5" Hg
Operating Temperature Range5 to 230°F (-15 to 110°C)
ForceTube Pull-Out Force @ 75°F (...
Thread1/8" NPT Thread
Material, Body316 Stainless Steel
Tubing1/4" OD Tubing
Material, SealsFKM
Max. psig250 psig
Operating Pressure0 to 250 psig @ 75°F
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
MediumCompatible Fluids (40 micron...
Vacuum-
Operating Temperature Range32 to 130°F (0 to 55°C) at c...
Force-
Thread-
Material, Body-
Tubing-
Material, SealsNitrile
Max. psig-
Operating Pressure95 to 125% of Rated Voltage
CX14NB47501W
ROSS Controls
CX Series 2/2 Solenoid Valve, Normally Closed, Port (In) 1/2" NPT, Port (Out) 1/2"NPT, 24 VDC
Medium-
Vacuum-
Operating Temperature Range-
Force-
Thread-
Material, Body-
Tubing-
Material, Seals-
Max. psig-
Operating PressureVacuum to 145 psig (vacuum t...
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
