PQS-FC05P Clippard Electronic Components

Name: PQS-FC05P
Brand: Clippard
Price: 13.49 USD
Availability: BackOrder

Part#:PQS-FC05P

Manufacturer:Clippard

Category:Electronic Components

Product Lifecycle:Active

Product description

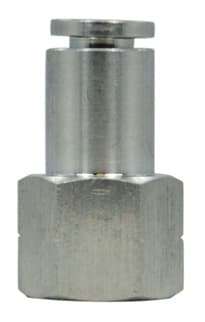

S/S Push-Quick Female Connector, 5/32", 1/8" NPT, Provides a simple method of connecting pneumatic components to each other and system piping.

Product Details

Operating Temperature Range
5 to 230°F (-15 to 110°C)
Material, Seals
FKM
Material, Body
316 Stainless Steel
Force
Tube Pull-Out Force @ 75°F (non-pressurized): 1/8" - 5/32": >10 lb.; 1/4" - 1/2": >20 lb.
Weight
0.0400
Thread
1/8" NPT Thread
Medium
Air, Inert Gas, Water, Liquid, Oil
Vacuum
0 to 29.5" Hg
Operating Pressure
0 to 250 psig @ 75°F
Tubing
5/32" OD Tubing
Max. psig
250 psig

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PQS-FC05P on Applied Automation is $13.49. Order now.
