PQS-EU12 Clippard Electronic Components

Name: PQS-EU12
Brand: Clippard
Price: 34.42 USD
Availability: BackOrder

Part#:PQS-EU12

Manufacturer:Clippard

Category:Electronic Components

Product Lifecycle:Active

Product description

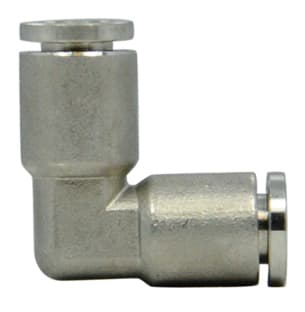

S/S Push-Quick Elbow Union, 3/8”, Provides a simple method of connecting pneumatic components to each other and system piping.

Product Details

Operating Temperature Range
5 to 230°F (-15 to 110°C)
Weight
0.0400
Material, Body
316 Stainless Steel
Force
Tube Pull-Out Force @ 75°F (non-pressurized): 1/8" - 5/32": >10 lb.; 1/4" - 1/2": >20 lb.
Operating Pressure
0 to 250 psig @ 75°F
Material, Seals
FKM
Max. psig
250 psig (17 bar)
Medium
Air, Inert Gas, Water, Liquid or Oil
Vacuum
0 to 29.5" Hg
Tubing
3/8" OD Tubing

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PQS-EU12 on Applied Automation is $34.42. Order now.
